Some of my 2025 productions

Some of my 2024 productions

Some of my 2023 productions.

BACK TO TOP

BACK TO TOP

BACK TO TOP

BACK TO TOP

BACK TO TOP

Some of my 2022 productions

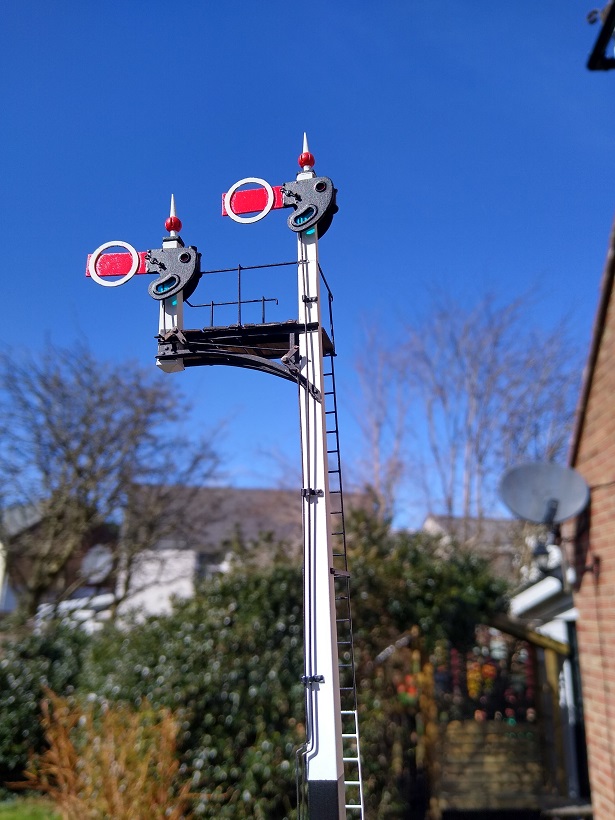

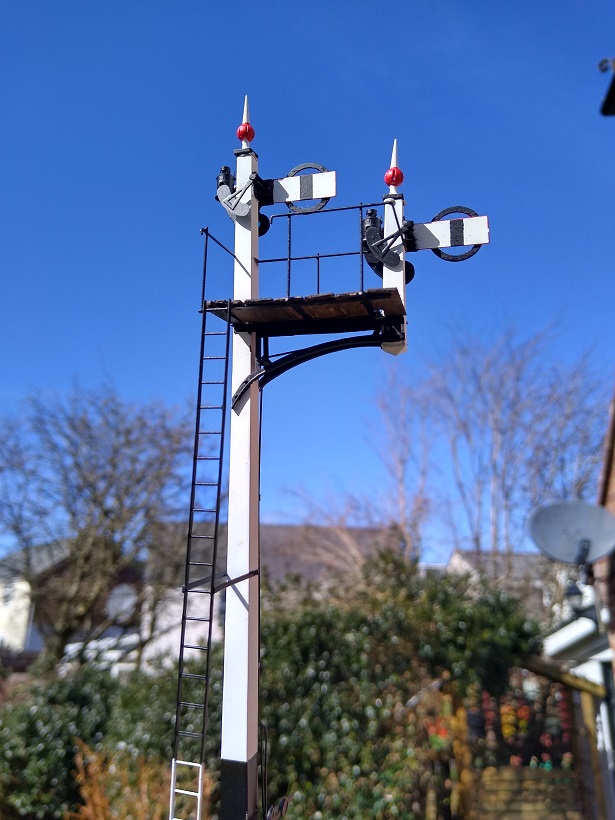

GWR early pattern bracket with 5ft arms.

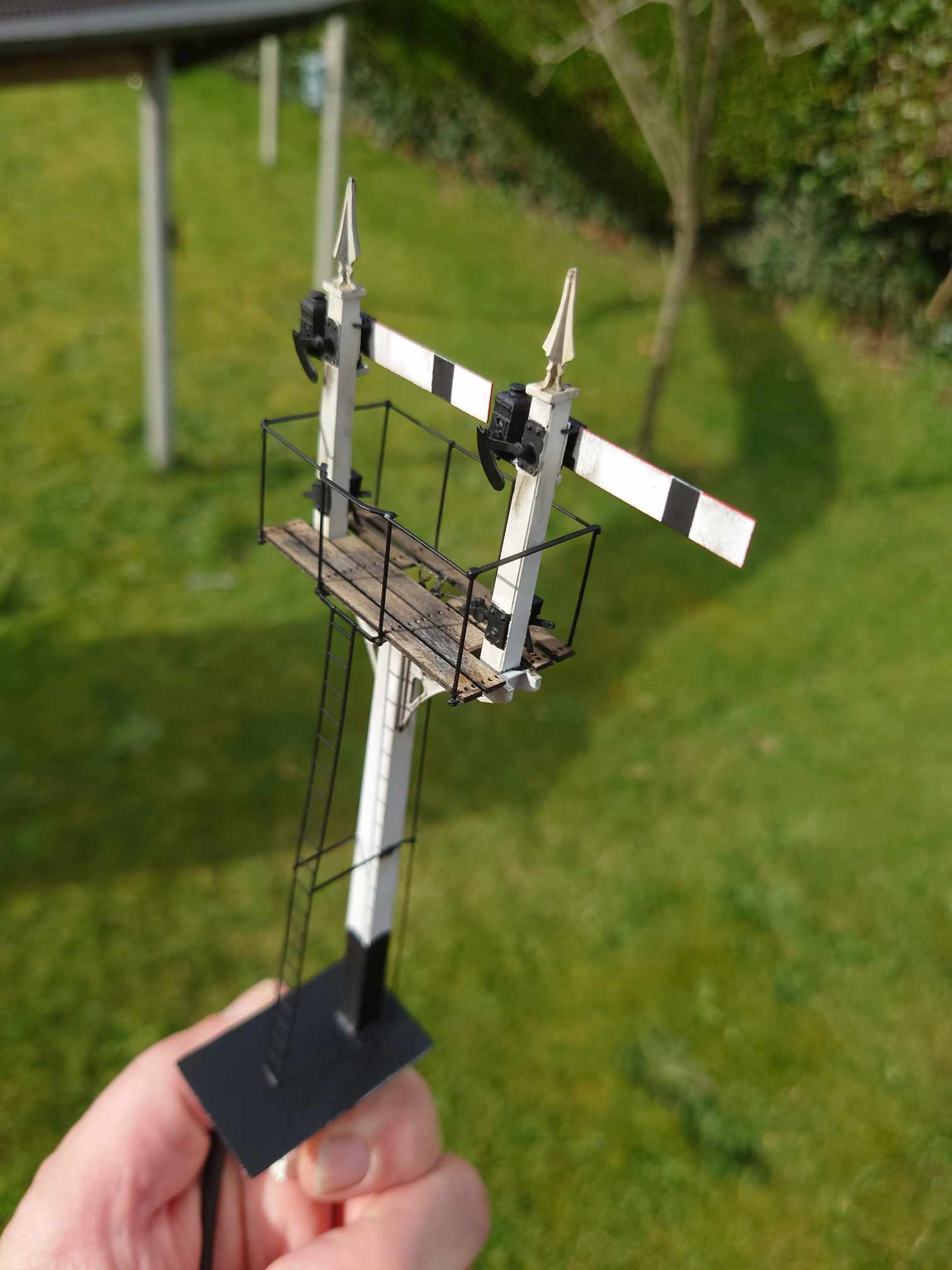

GWR Early pattern goods line bracket signal.

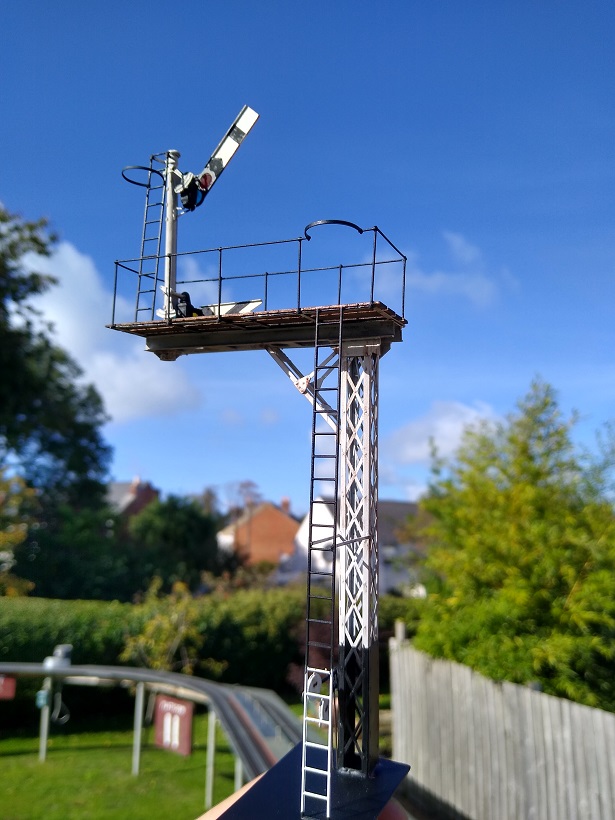

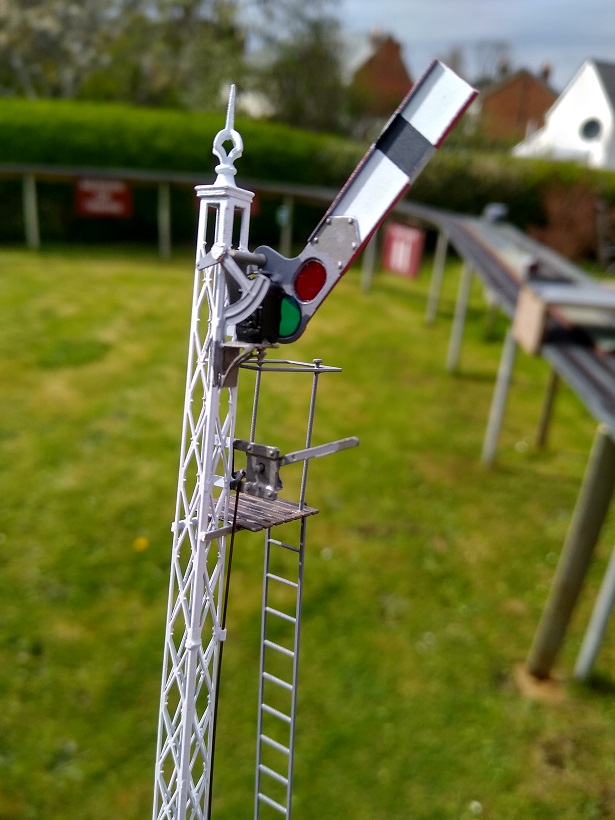

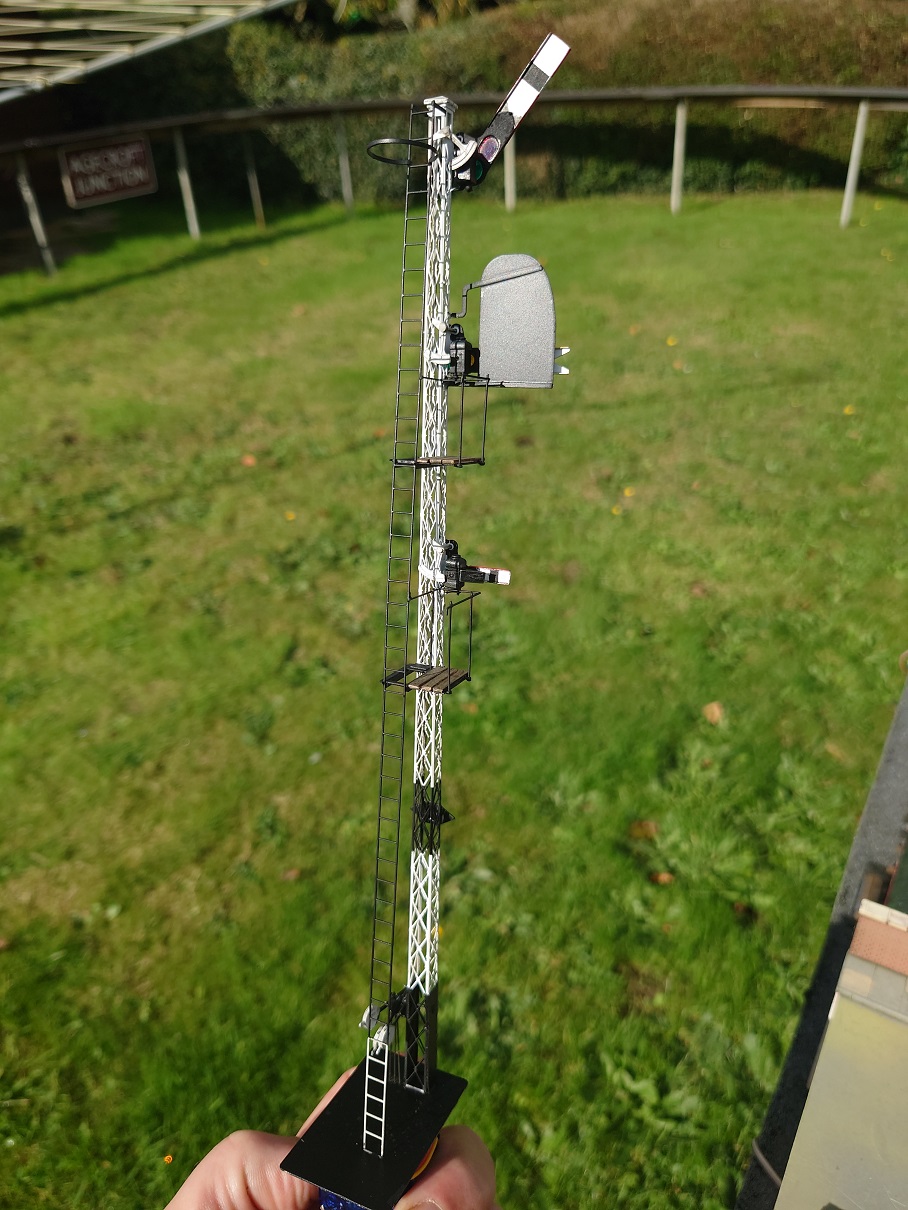

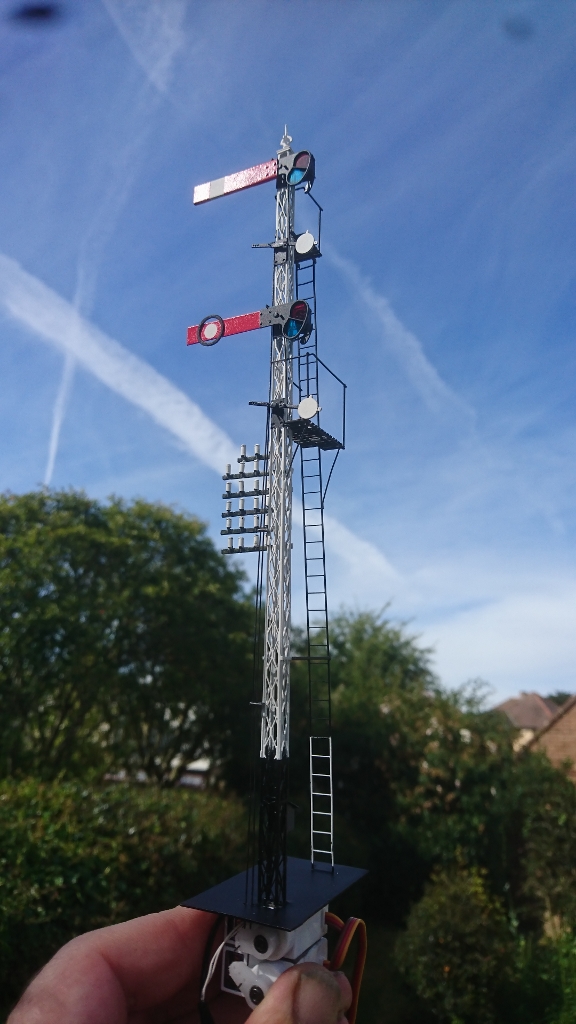

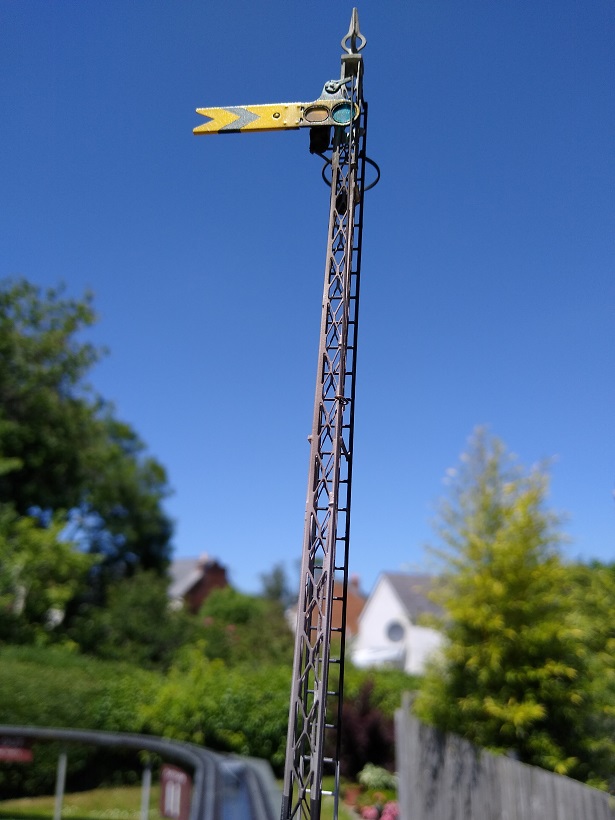

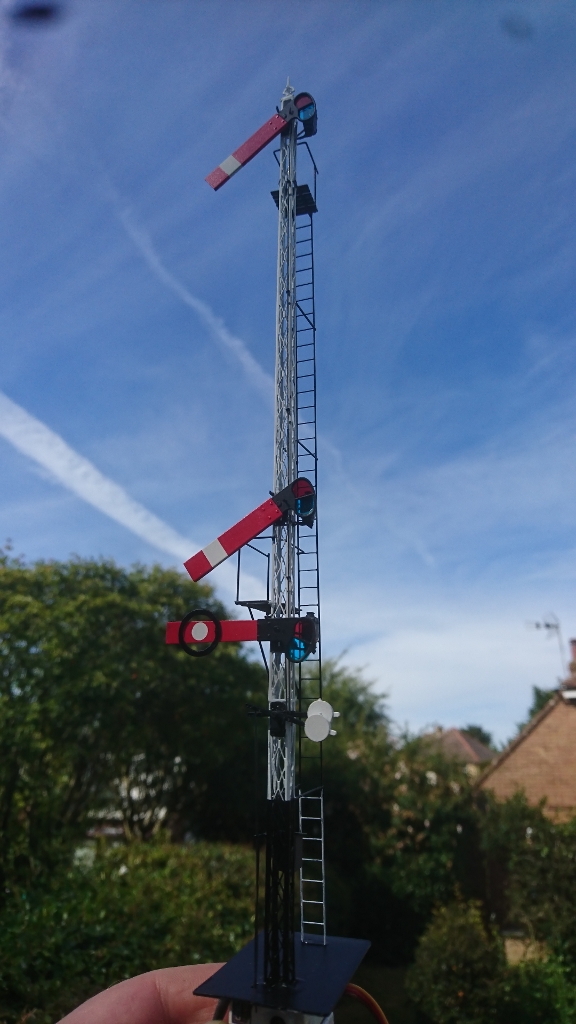

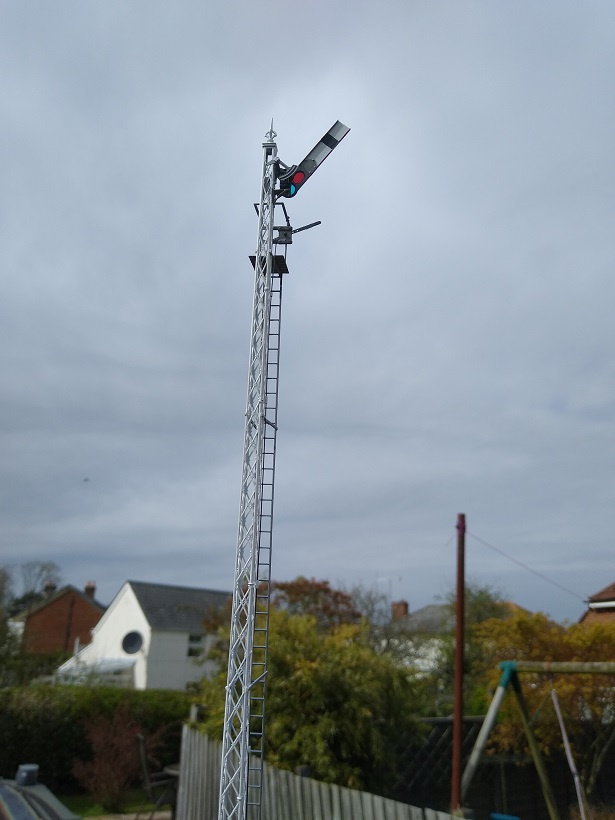

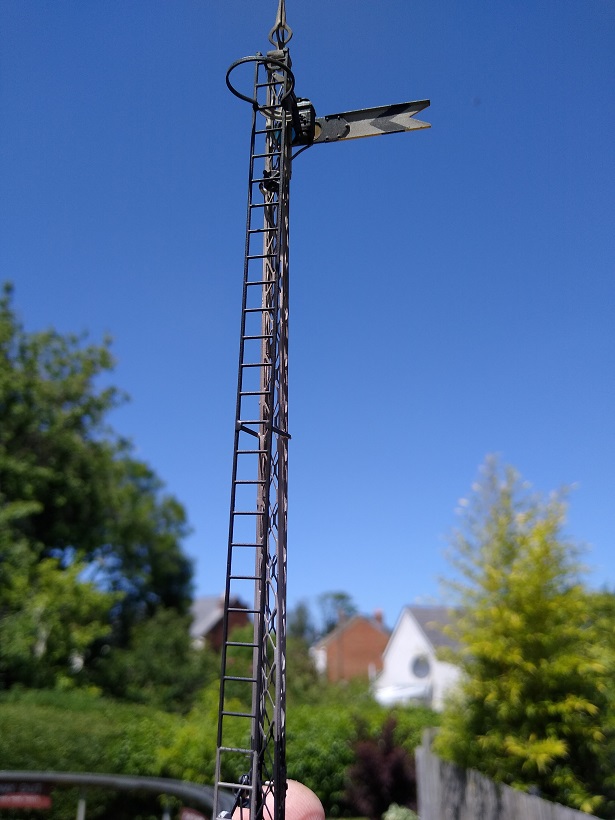

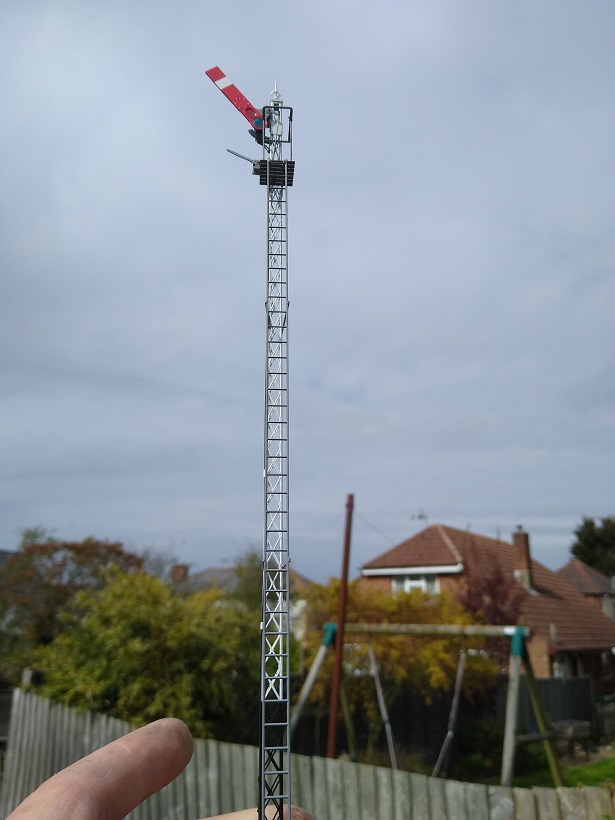

LMS lattice post 40 ft Co-acting stop signal. All etches from the Boltons Bits range.



BACK TO TOP

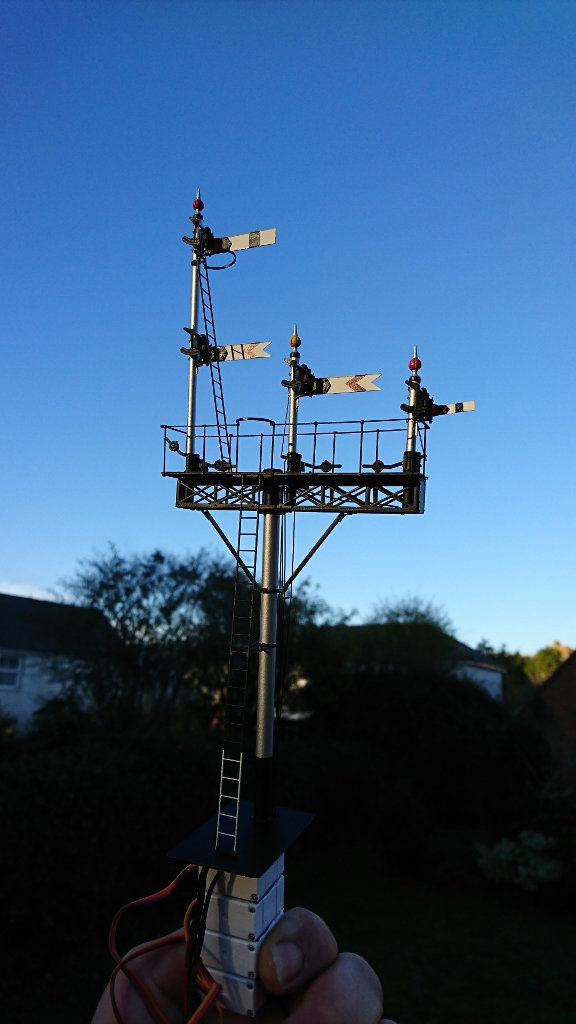

A selection of tubular construction LMS bracket signals, all constructed using Boltons Bits etched parts.

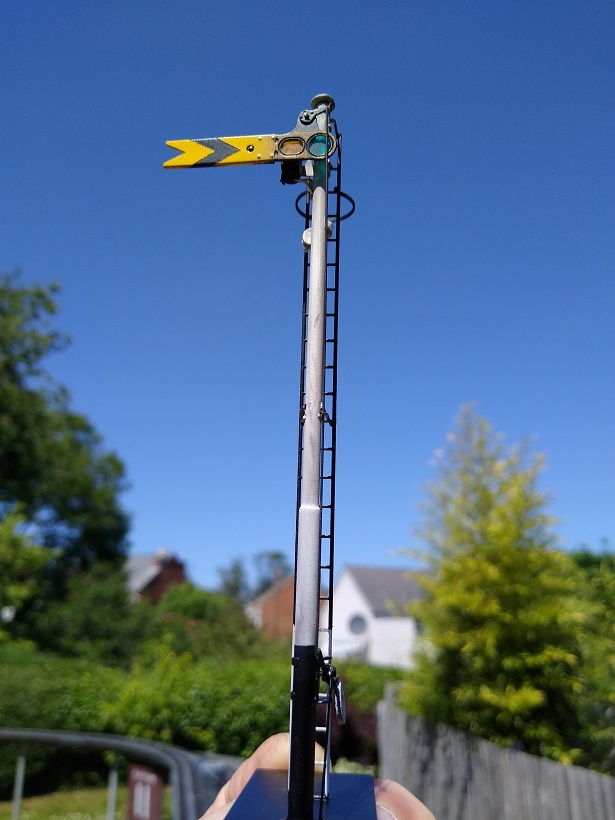

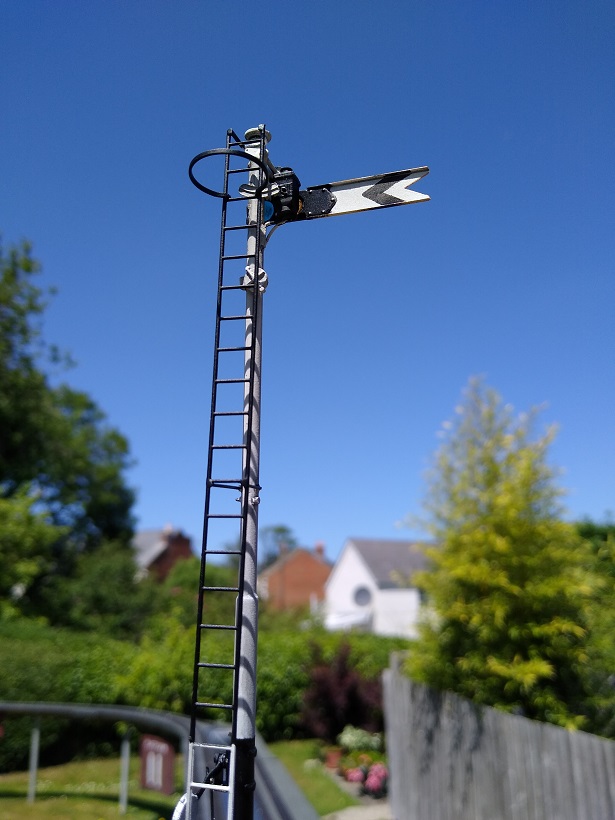

Ex NBR distant signal fitted with upper quadrant arm.

BACK TO TOP

Ex NBR stop signal fitted with upper quadrant arm.

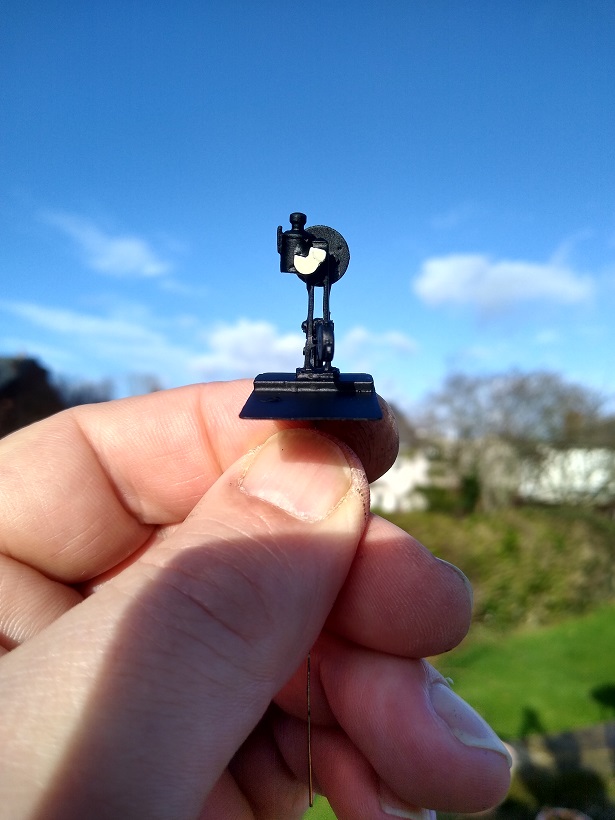

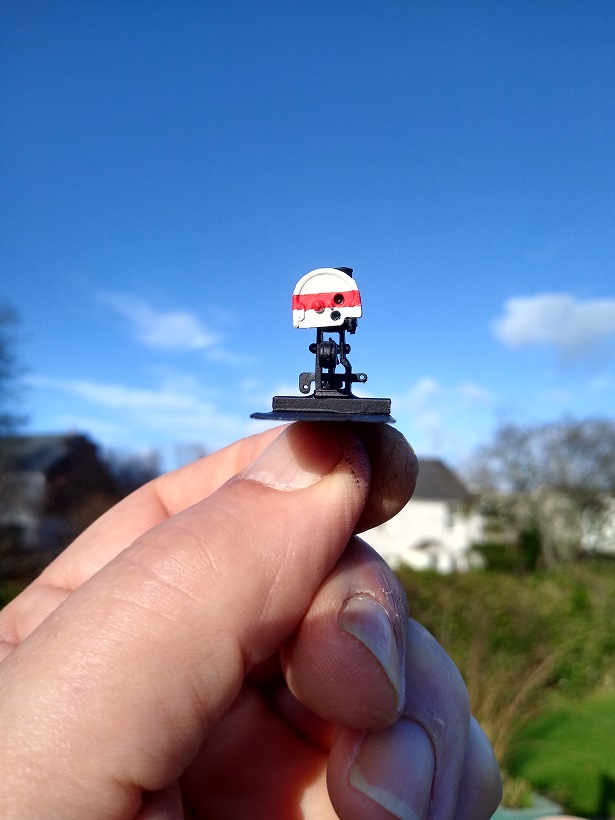

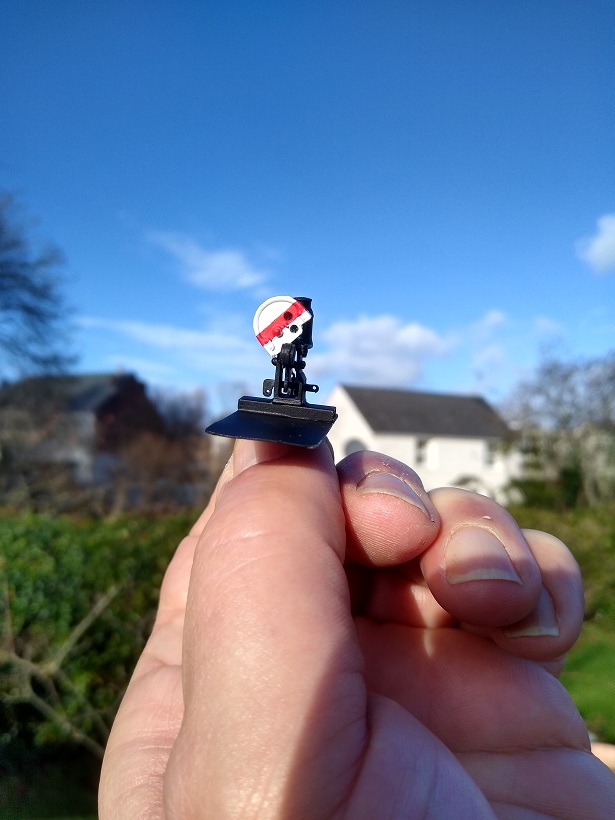

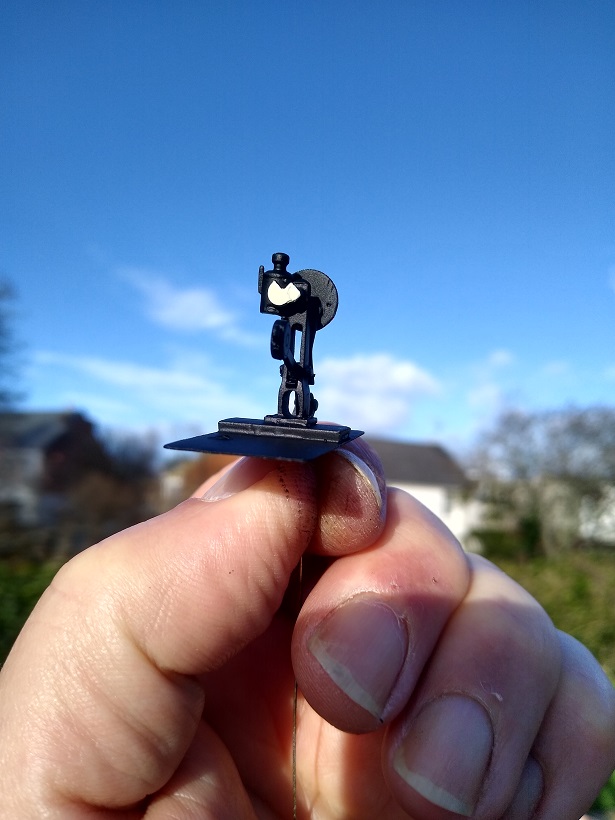

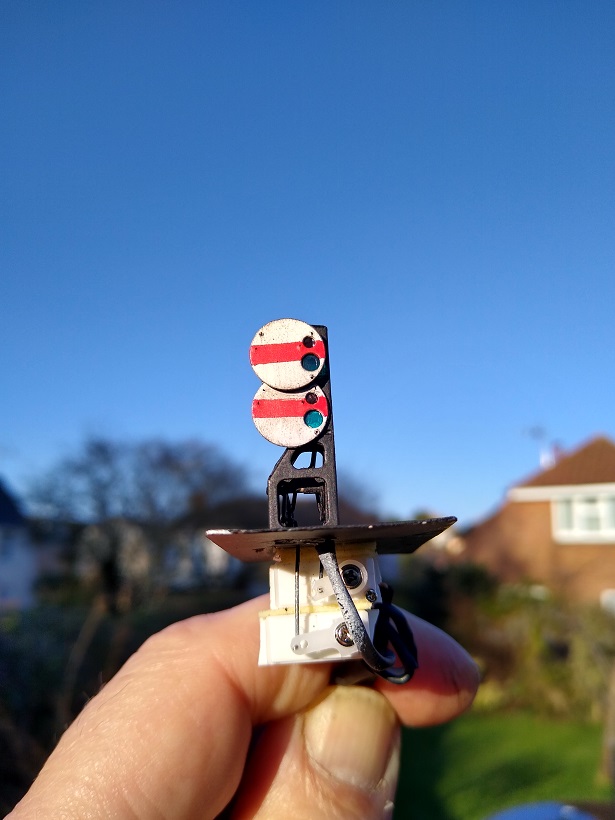

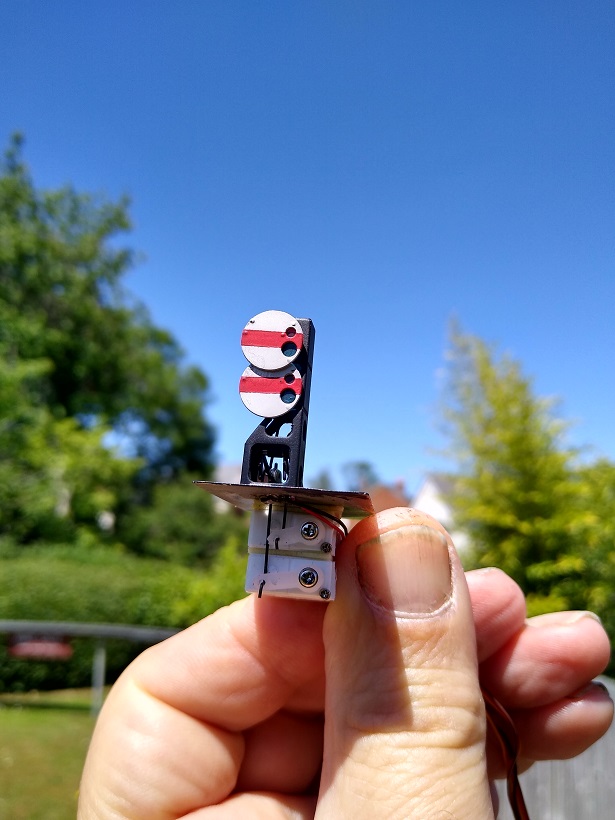

LMS twin disc ground signal from Boltons Bits kit.

BR(WR) extra tall bracket signal using Boltons Bits etches.

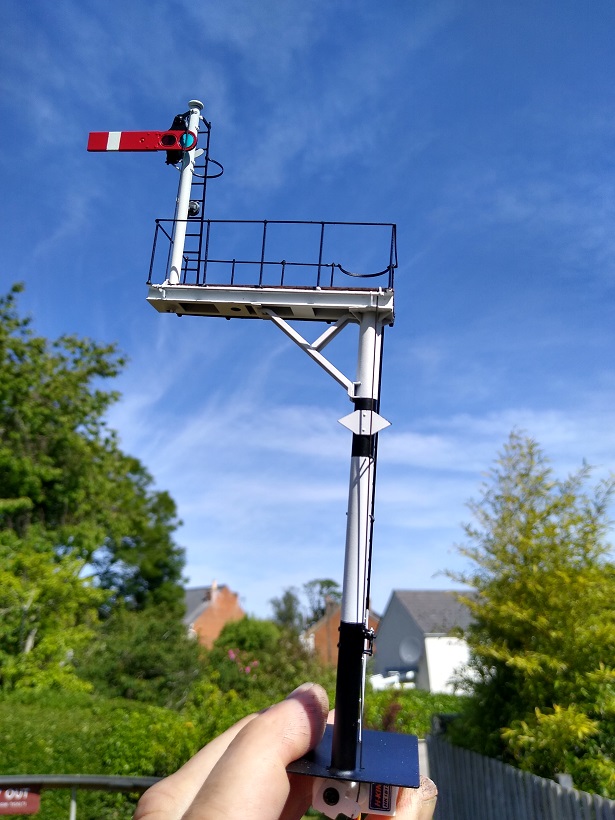

LMS restricted clearance stop signal using 3D printed bracket from Shapeways and Boltons Bits etches.

BACK TO TOP

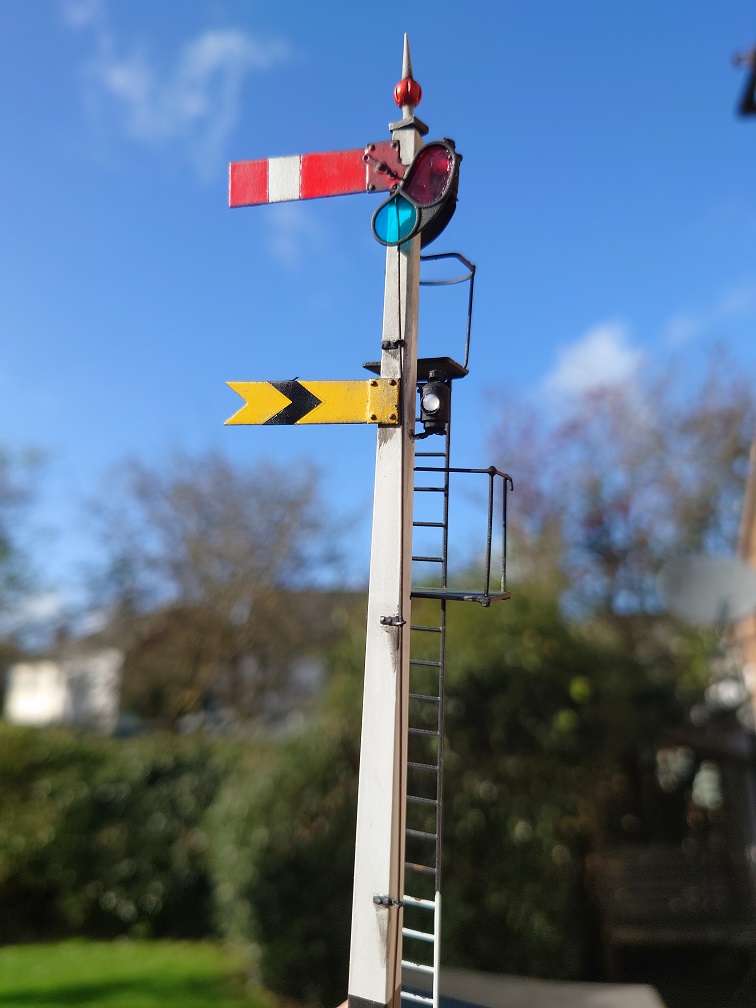

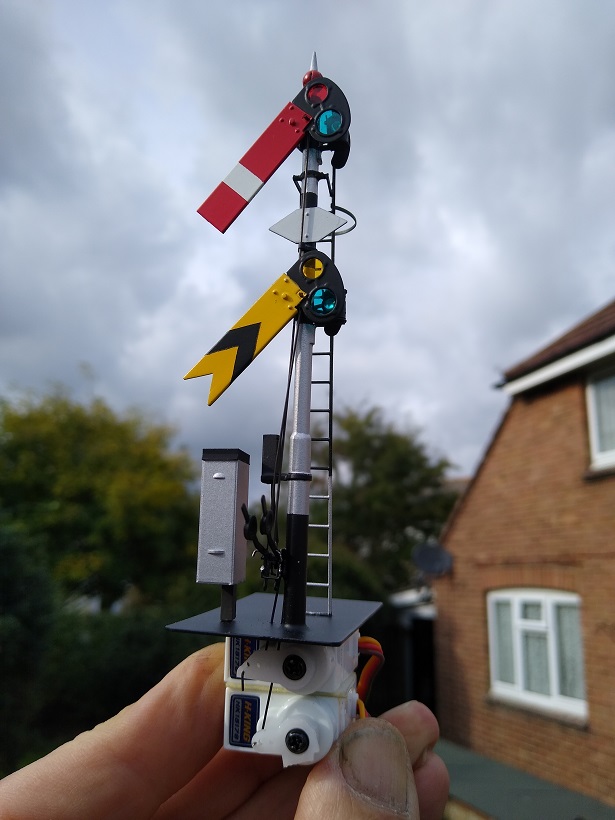

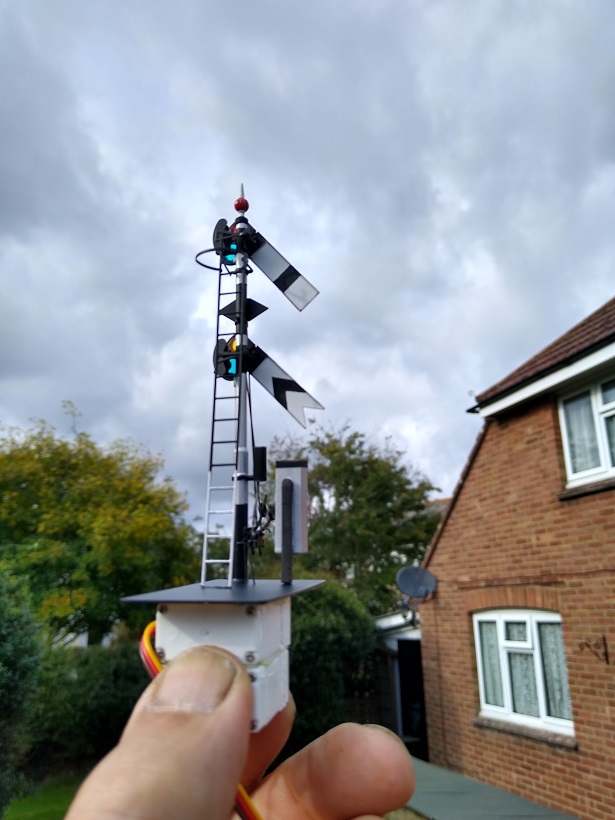

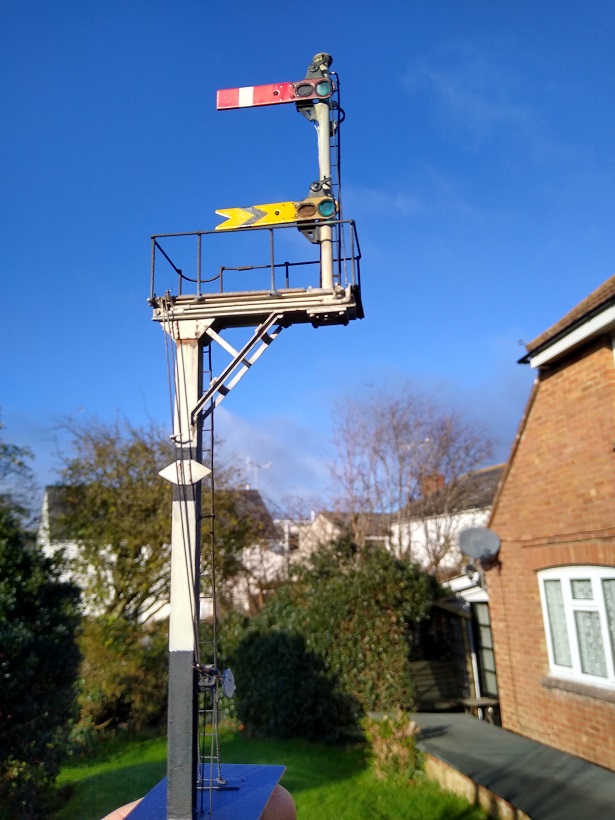

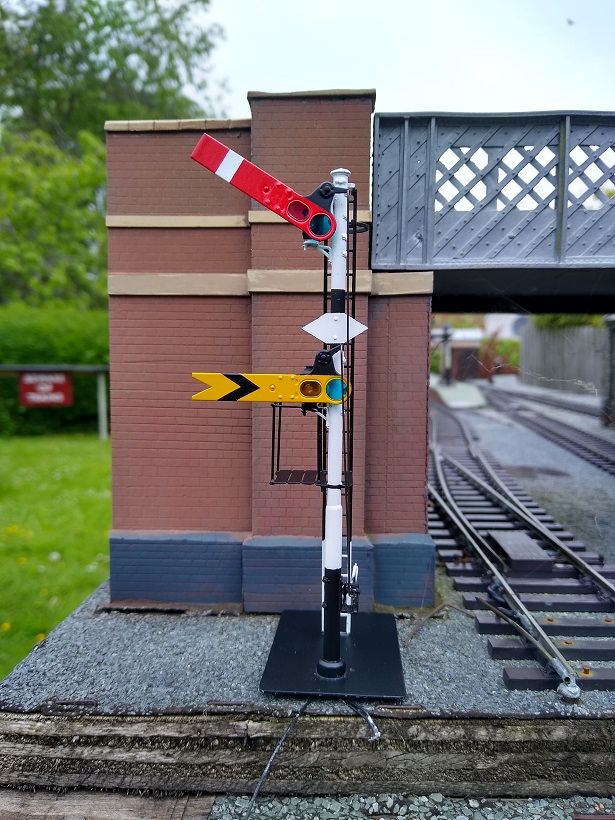

BR(WR) short stop and distant signal. All Boltons Bits etches with 3D printed battery cubicle.

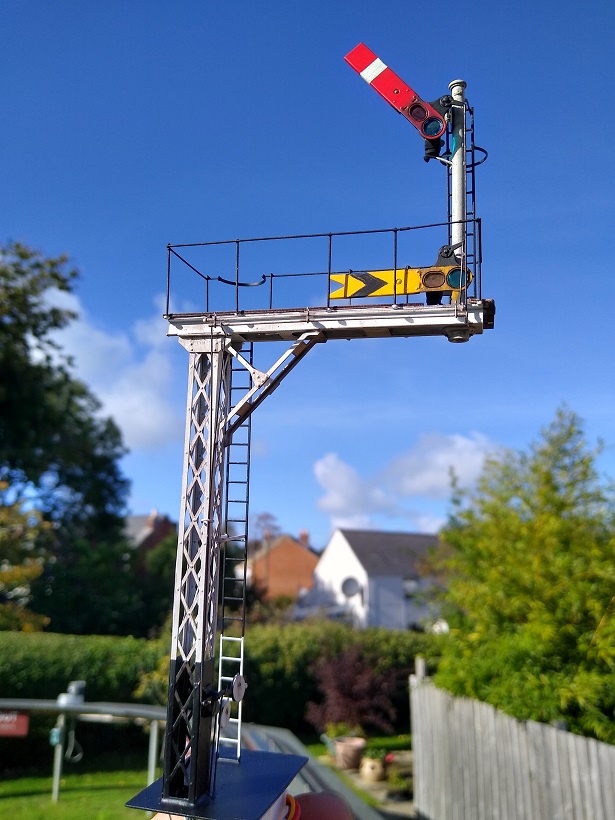

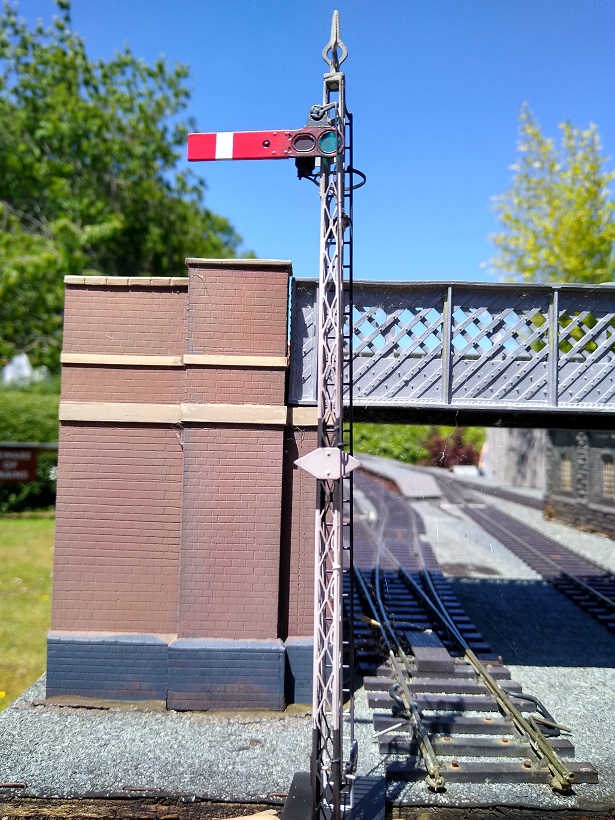

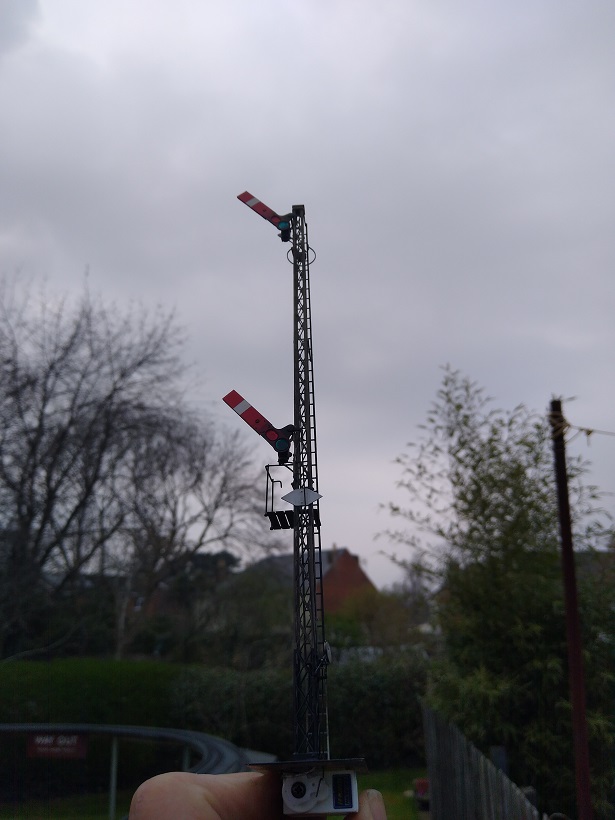

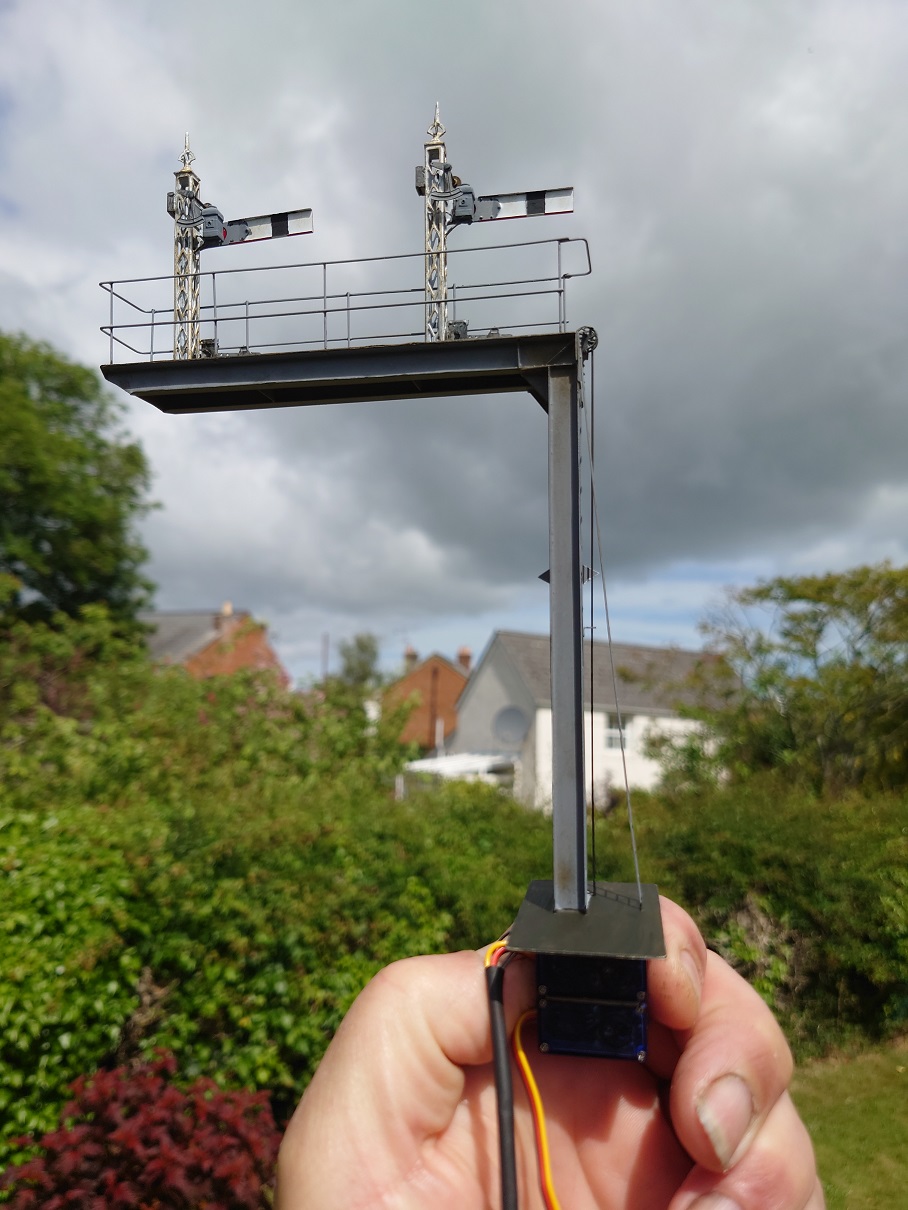

LMS parallel lattice post offset bracket stop and distant. All Boltons Bits etches.

BACK TO TOP

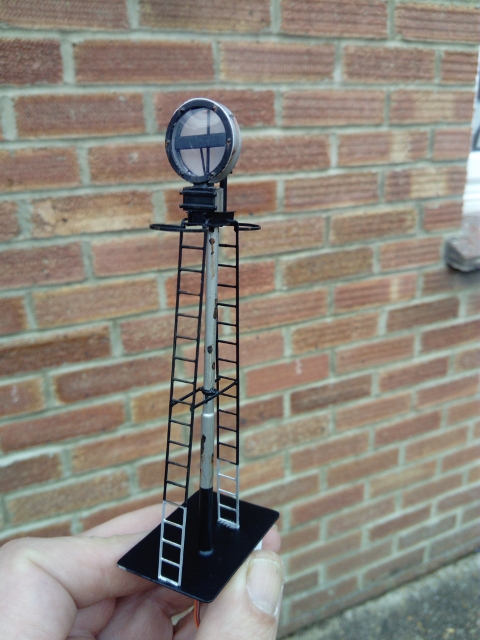

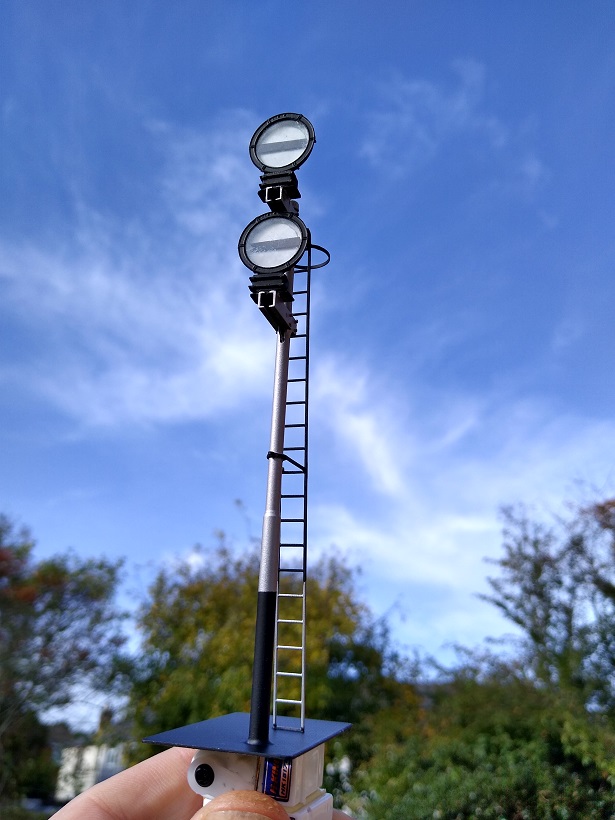

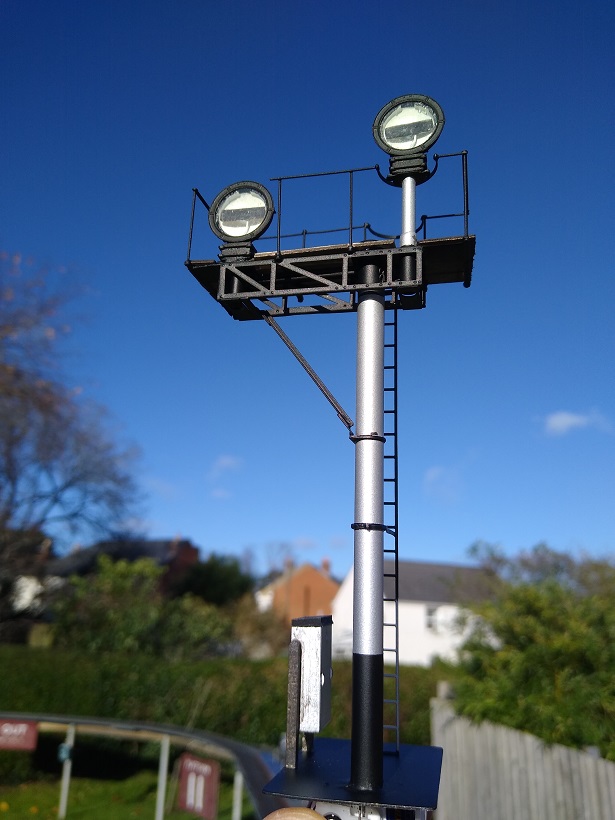

BR(WR) banner repeater, internally lit type. 3D printed cases with etched arms and fascia.

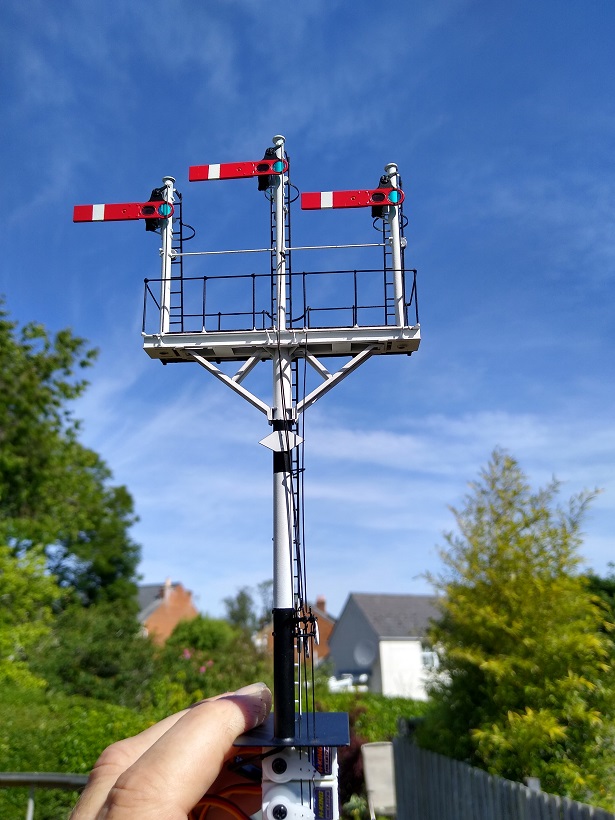

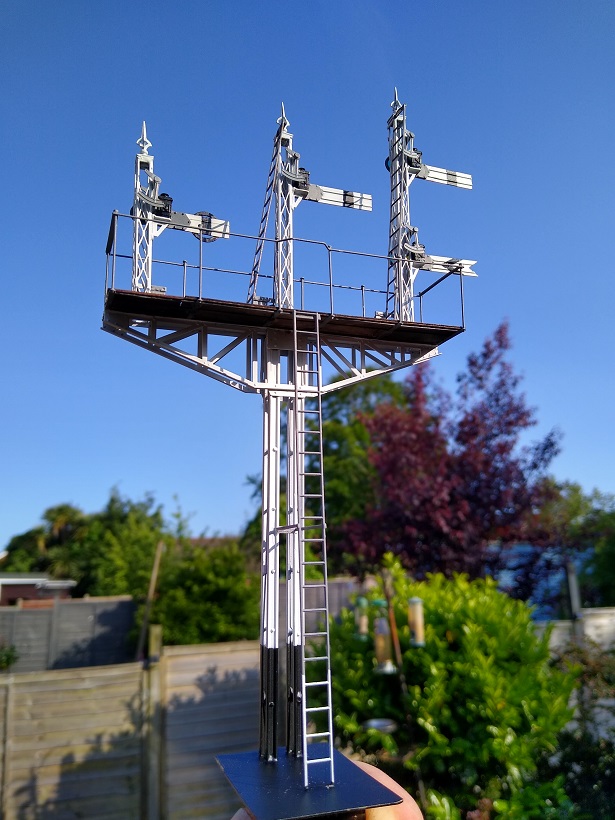

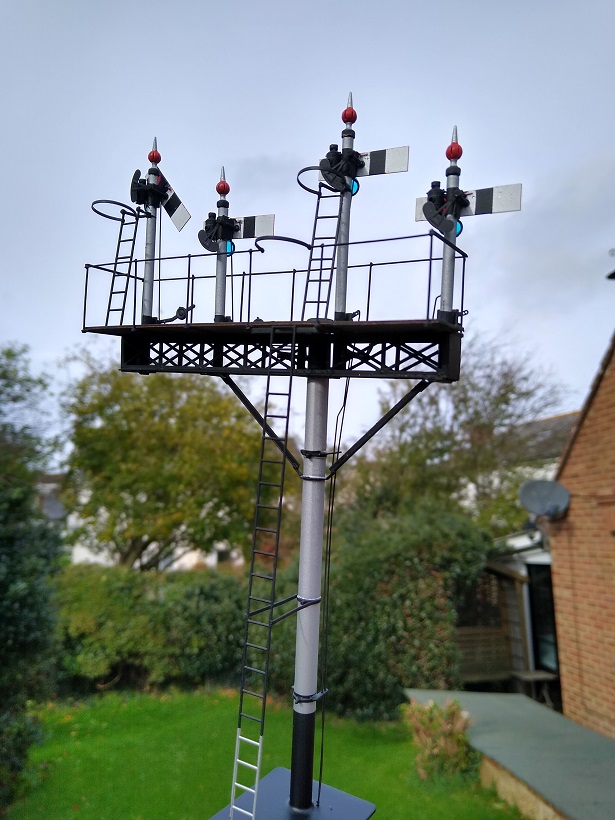

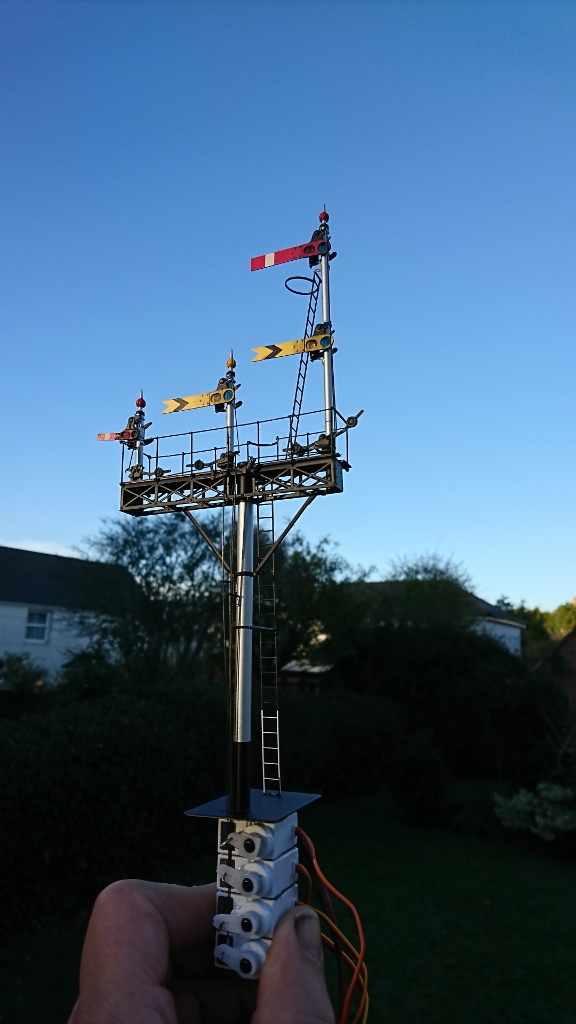

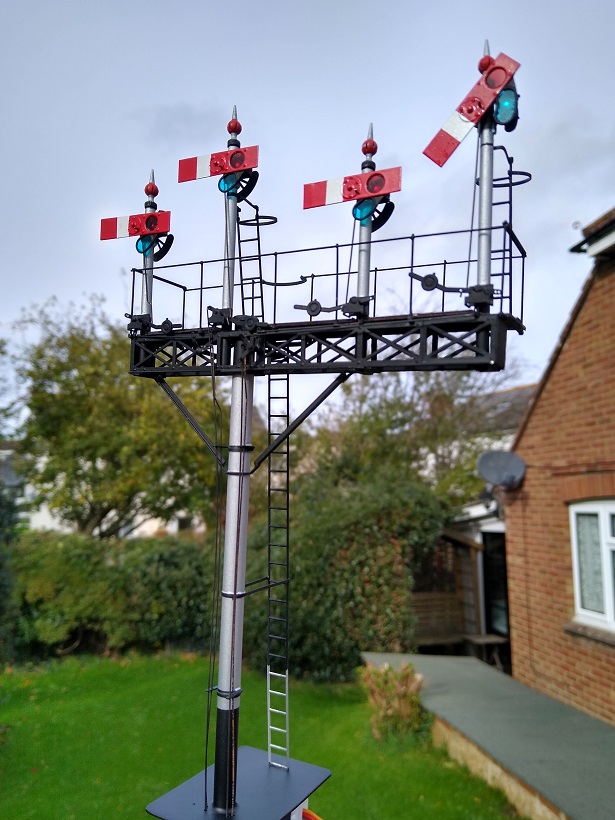

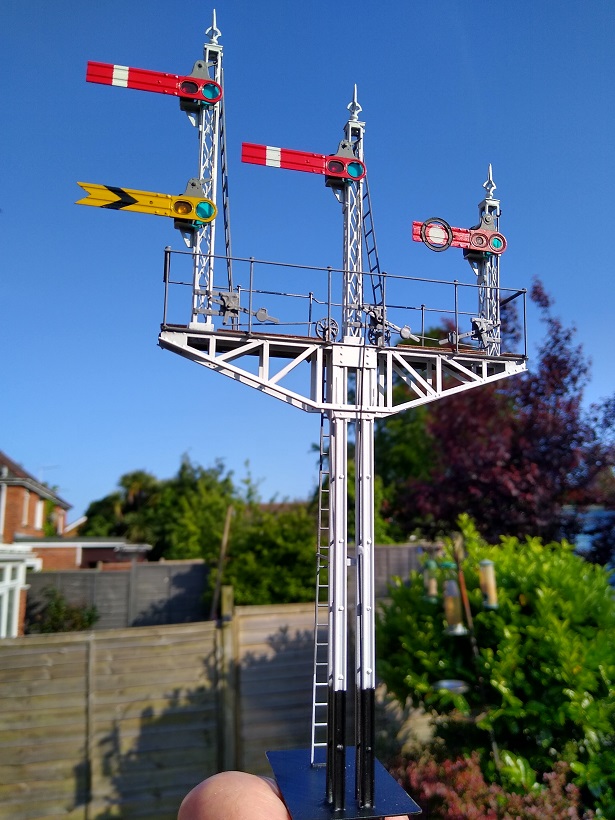

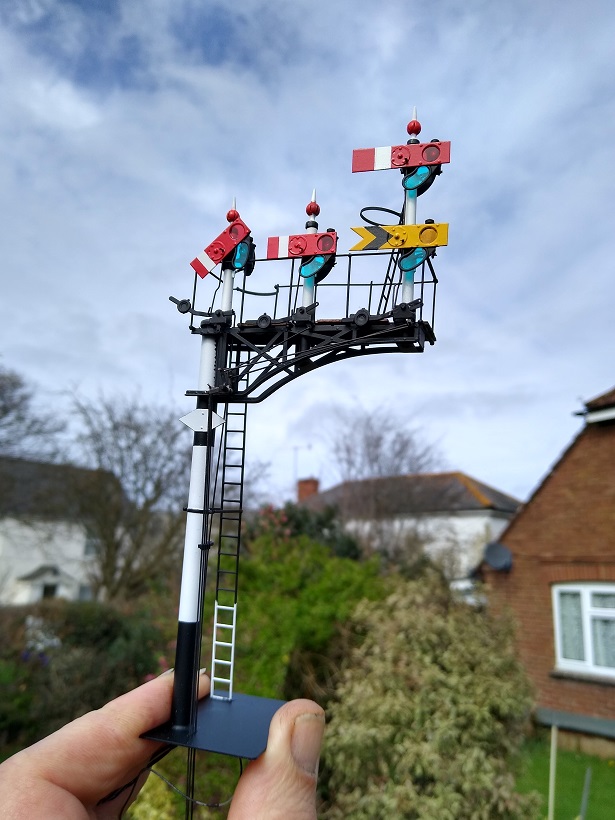

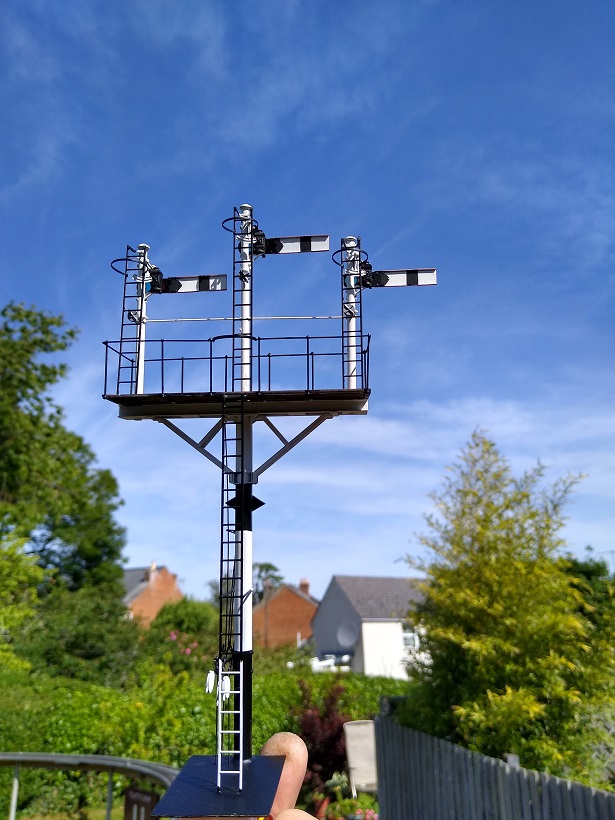

BR(WR) 4 doll centre pivoted tubular construction bracket signal. All from Boltons Bits etches.

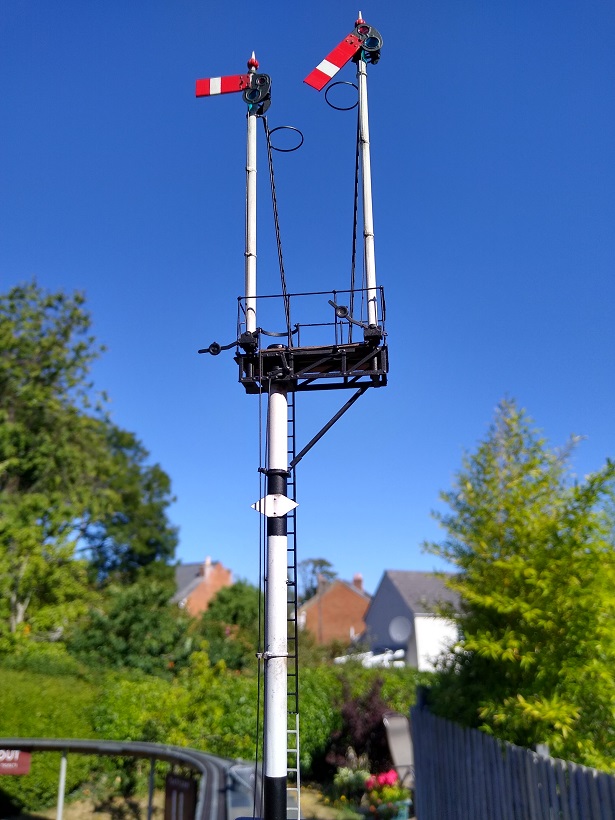

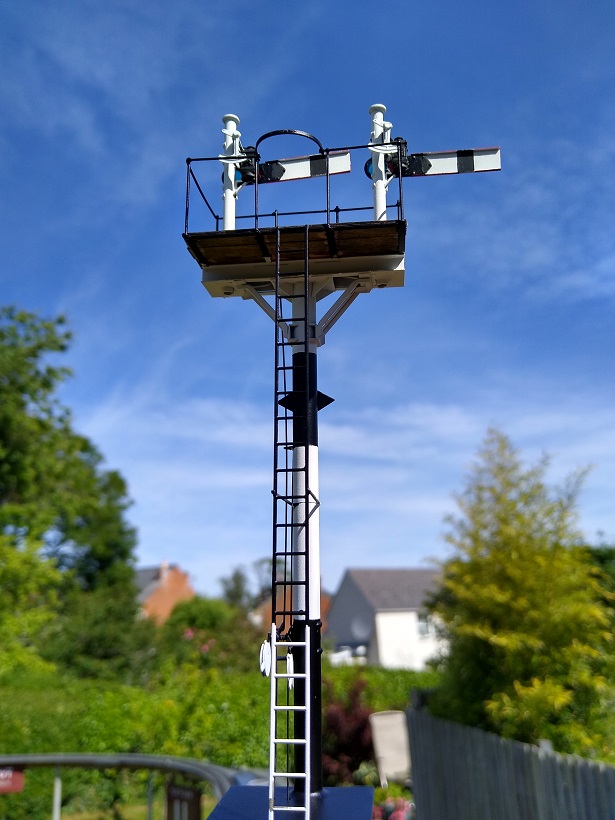

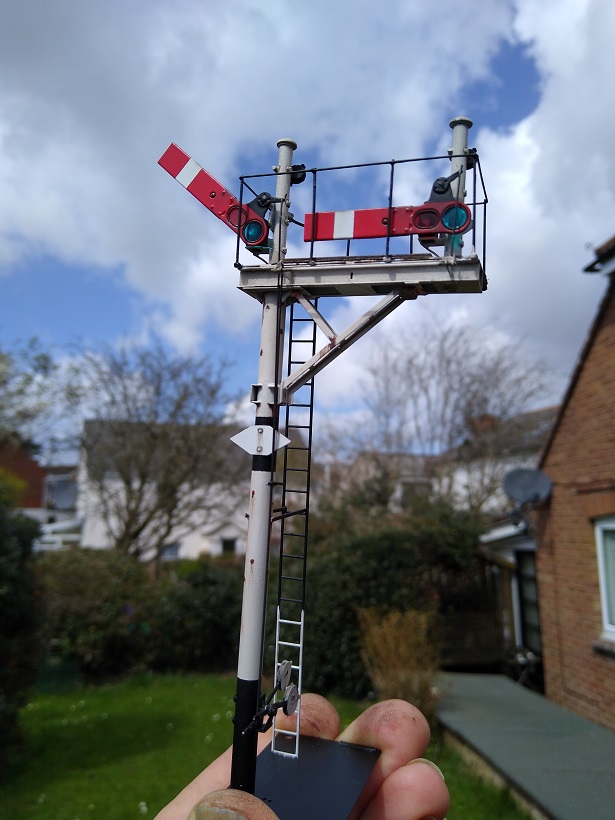

BR(WR) 2 doll bracket signal with goods line arm on left. All etches from the Boltons Bits range.

BACK TO TOP

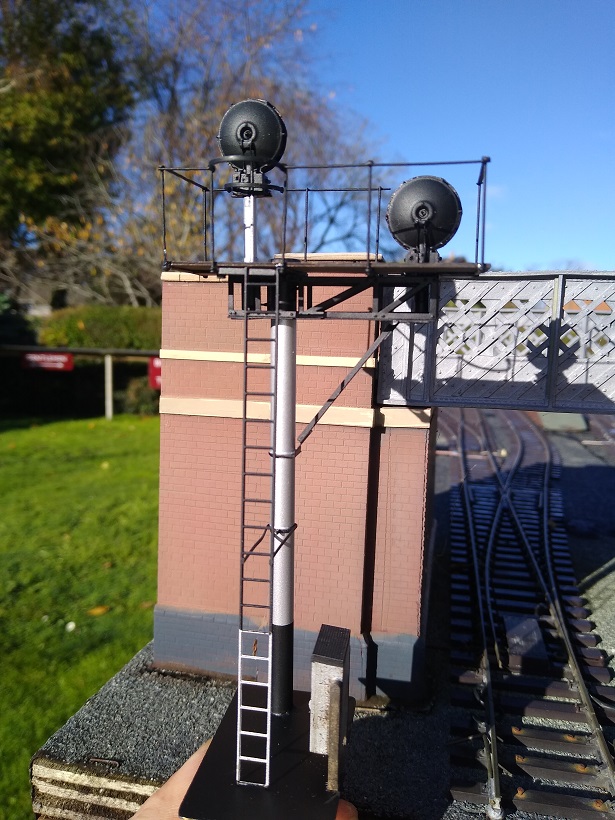

BR(WR) banner repeater, internally lit with 3D printed cases and etched arms/fascia.

LMS BFB post offset bracket. Overhauled older build fitted with new Boltons Bits arms.

BACK TO TOP

SOME OF MY 2021 PRODUCTIONS

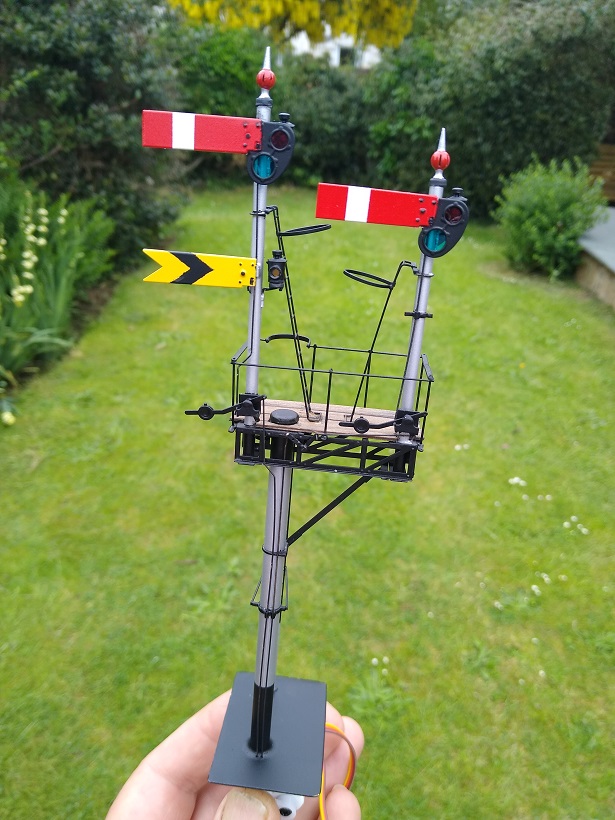

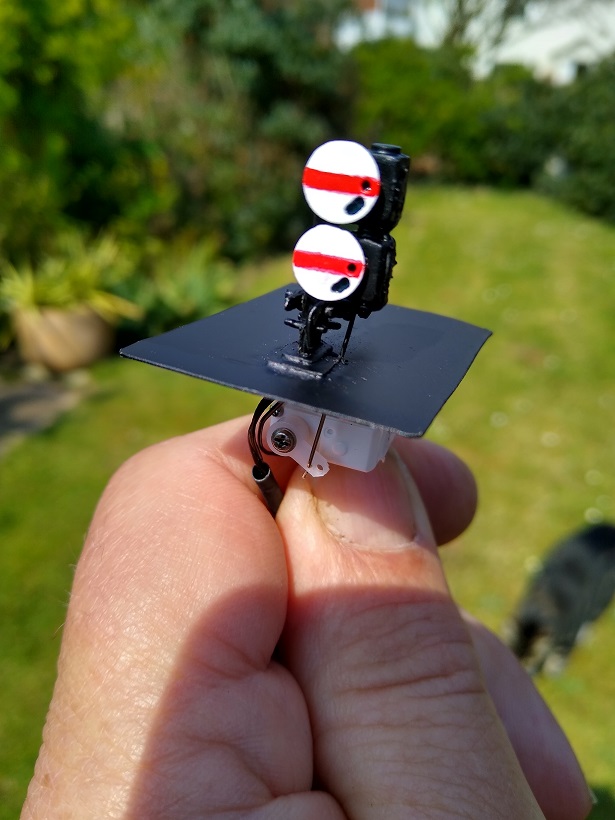

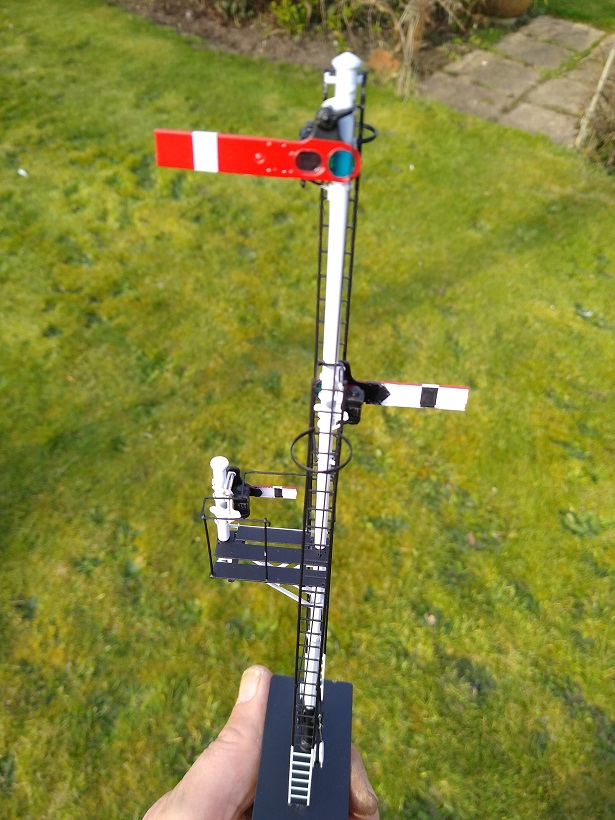

LMS upper quadrant LH offset bracket stop signal and twin ground disc using etches from the Boltons Bits range.

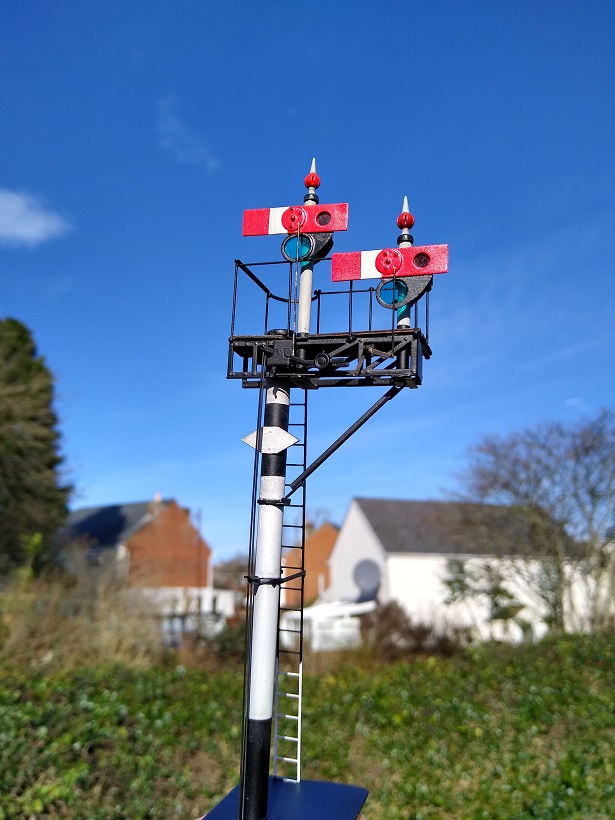

GWR tubular post RH bracket. Structure from the Boltons Bits range of etches with MSE etched arms

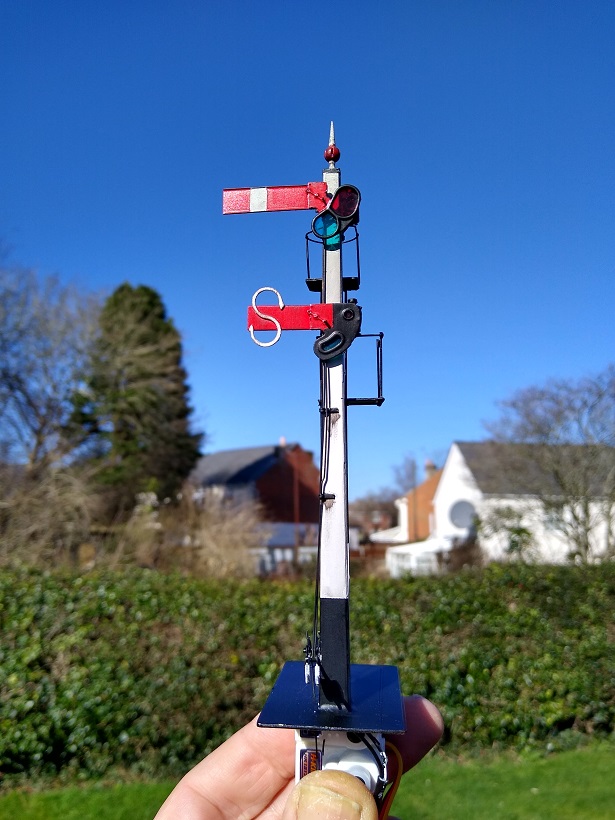

GWR early pattern stop signal with shunt arm. SSS etched arms with all other etches from the Boltons Bits range.

LNWR balanced bracket using all SSS parts.

GWR twin disc ground signal from a SSS kit.

BR(WR) tubular bracket signal using all Boltons Bits etches.

BR(WR) tubular bracket signal using all Boltons Bits etches.

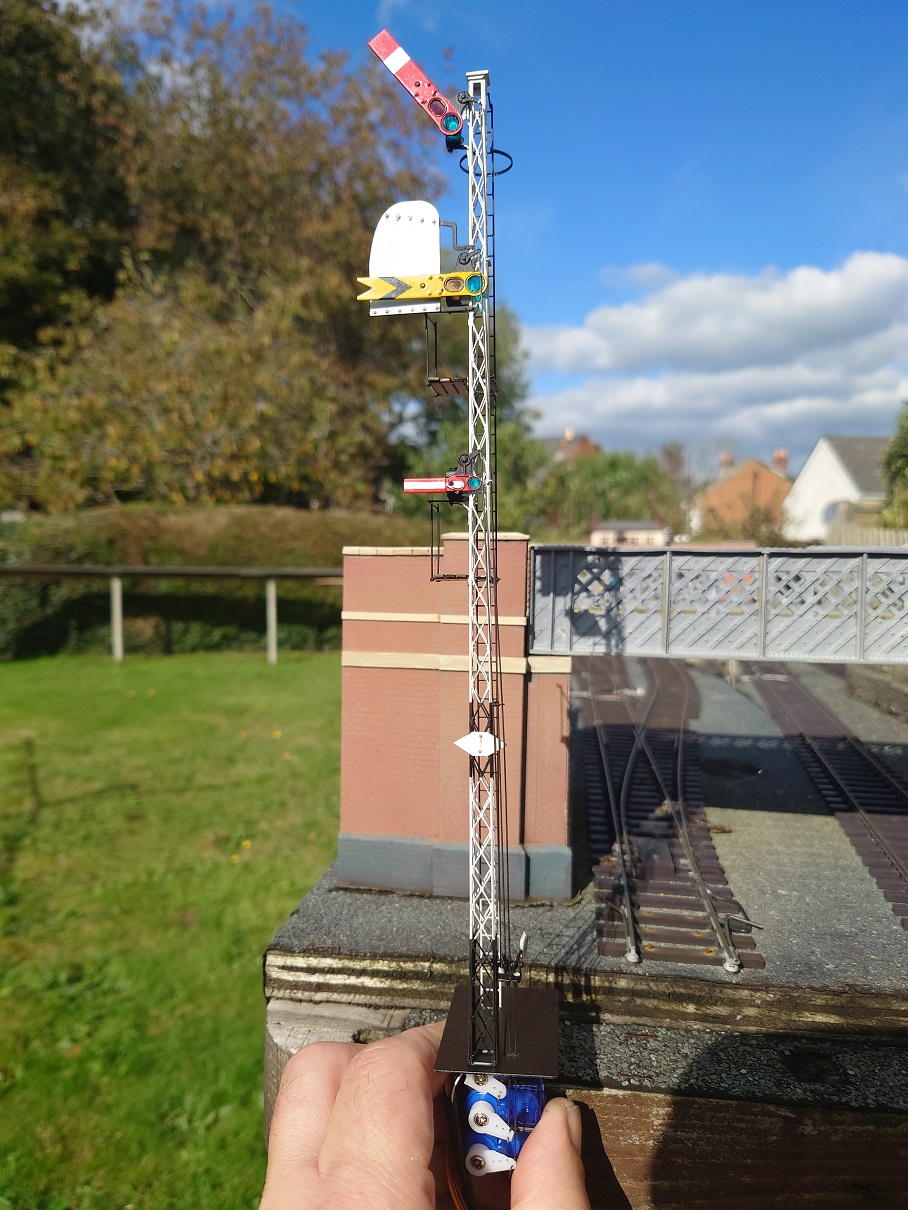

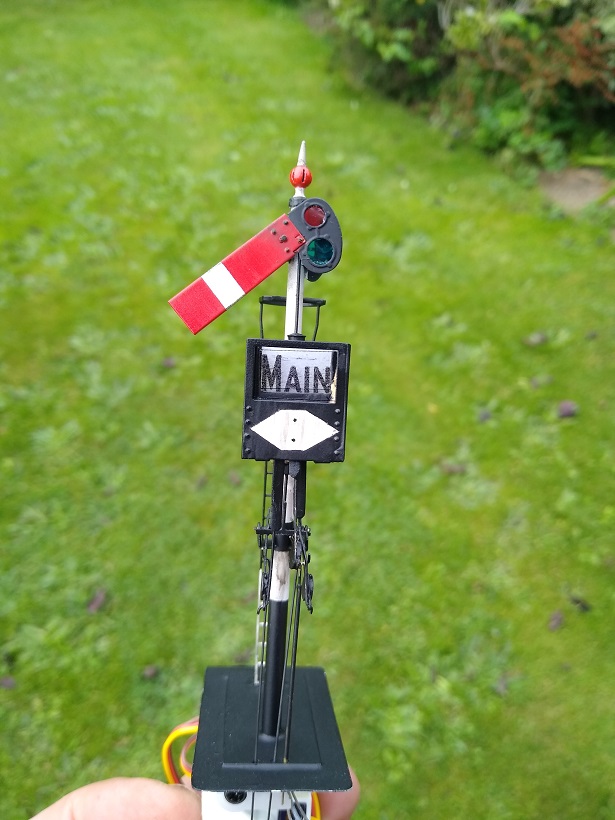

GWR stop signal with "cash register" route indicator. Boltons bits arm with modified MSE RI.

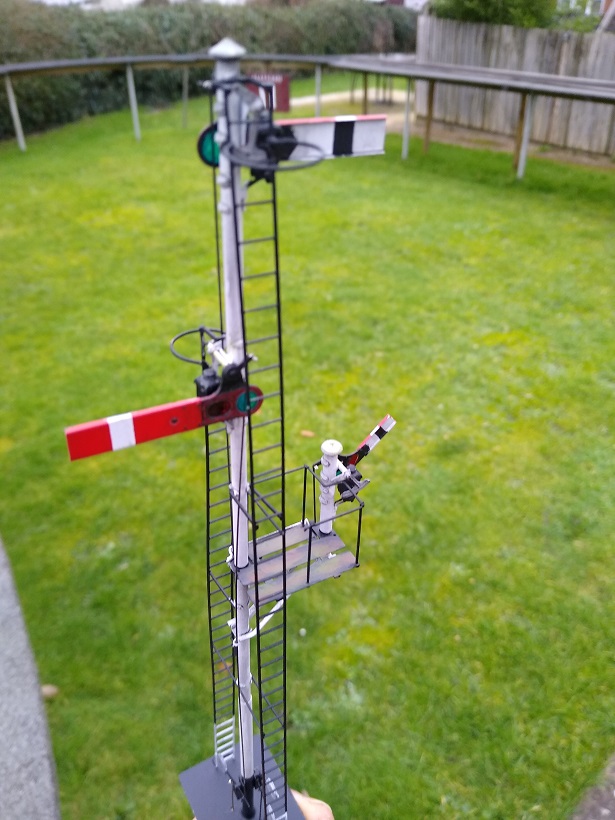

LMS upper quadrant two way stop signal with running line to loop signal. All etches used are from the Boltons Bits range

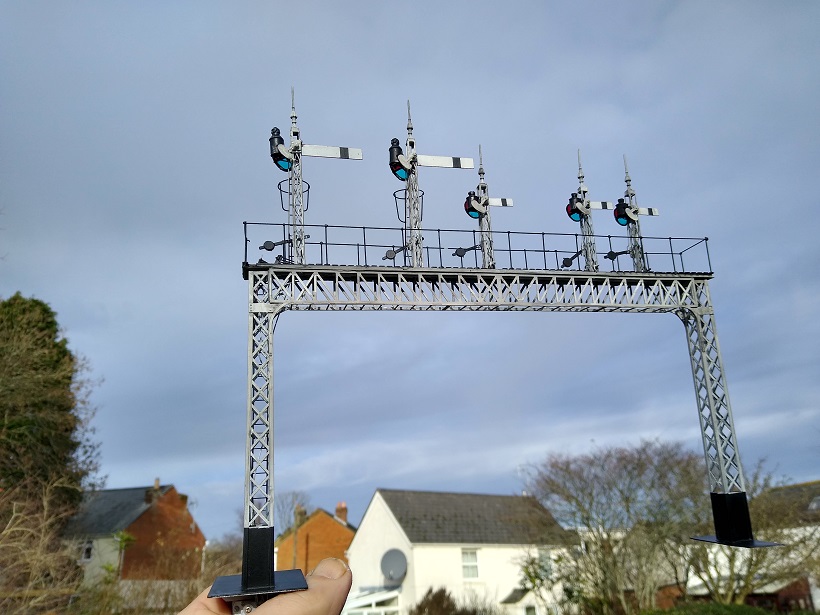

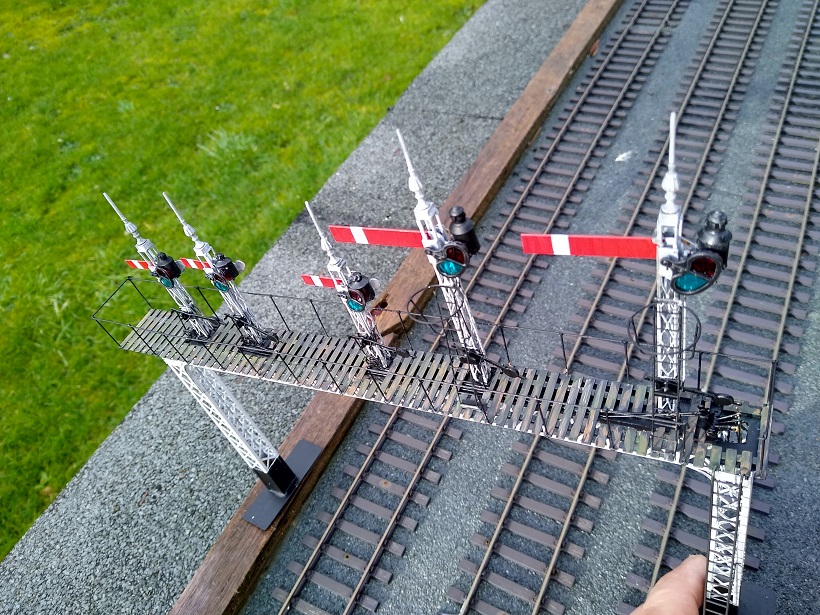

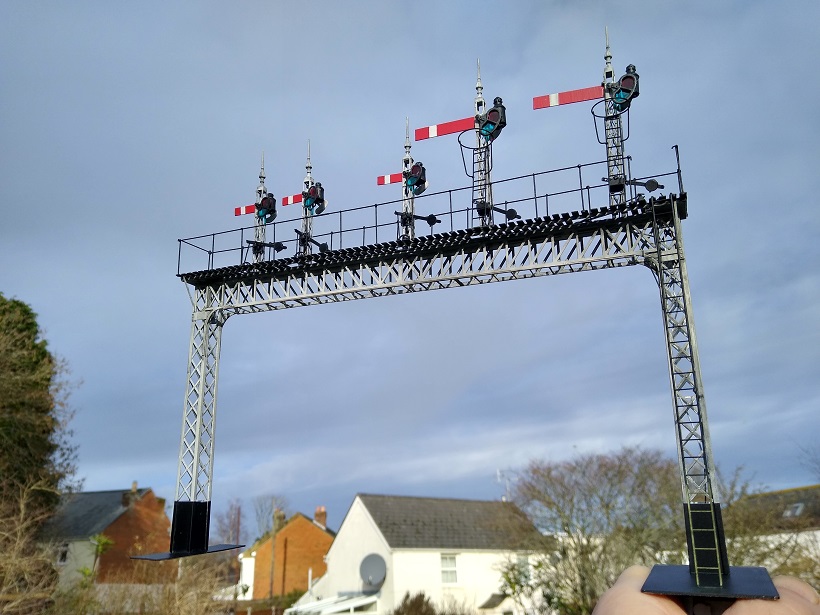

NER style signal bridge using mostly MSE parts with SSS arms and fittings.

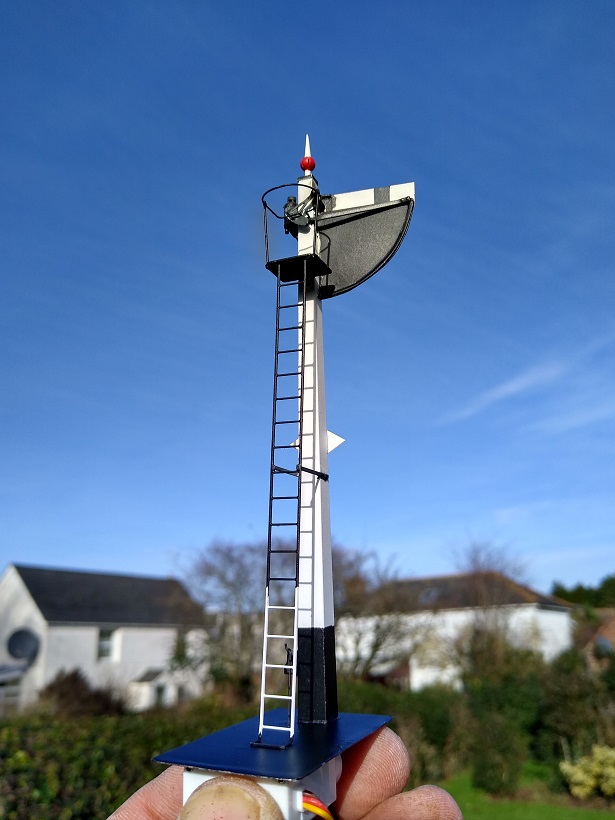

GWR early pattern stop signal with sightboard.

SOME OF MY 2020 PRODUCTIONS

Ex LSWR gallows bracket signal. Scratchbuilt support bracket. MSE etched post and cast finial, my own etched SR arm, backblinder and weightbar. Modelu lamp case. LED lit, manual operation.

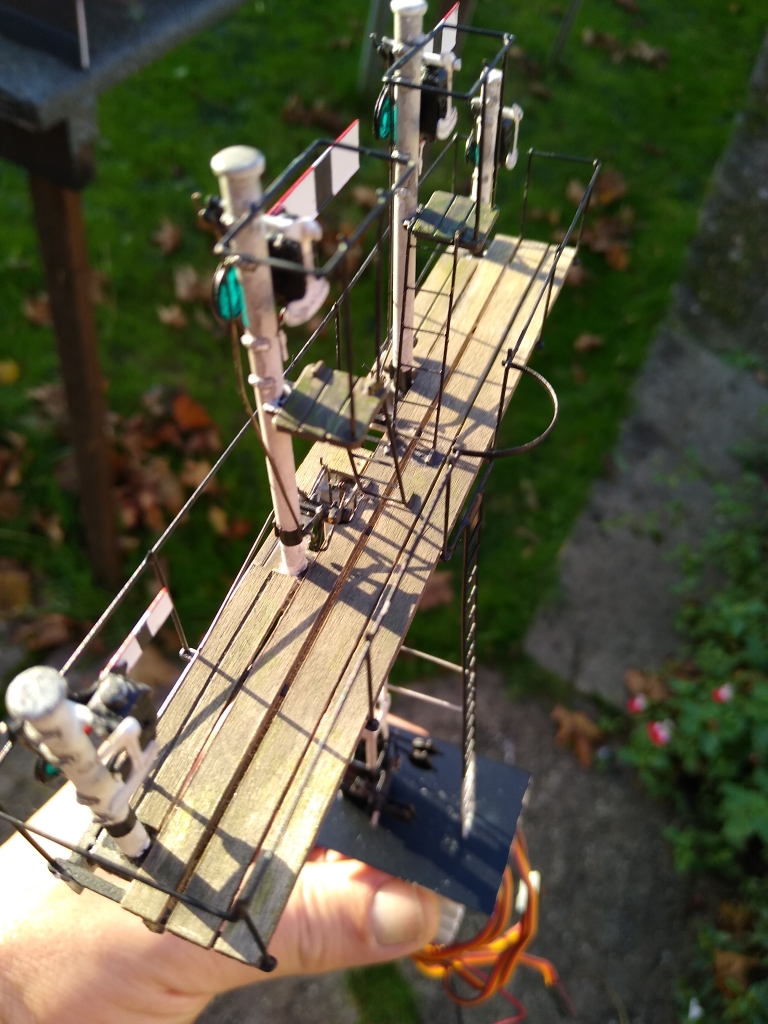

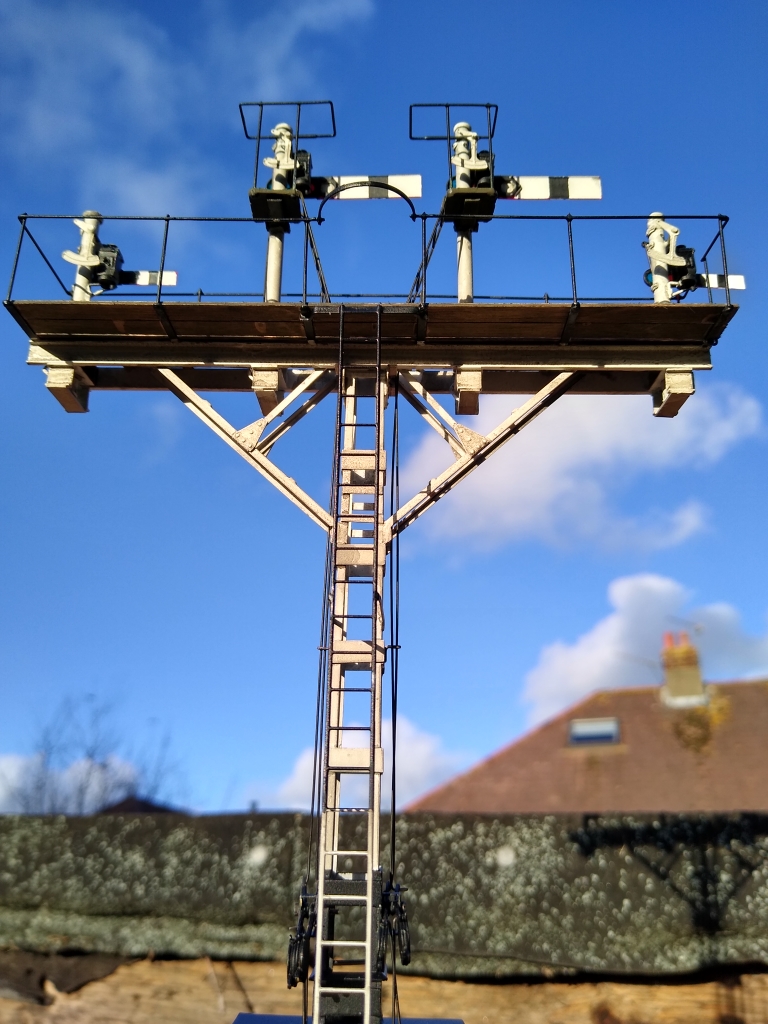

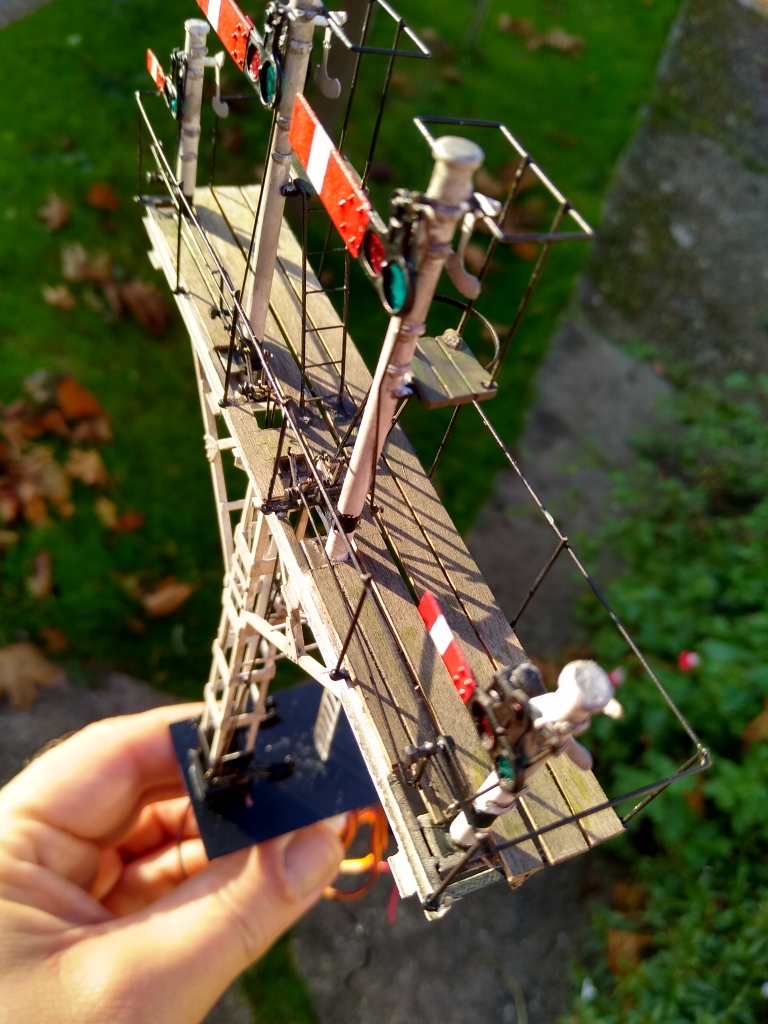

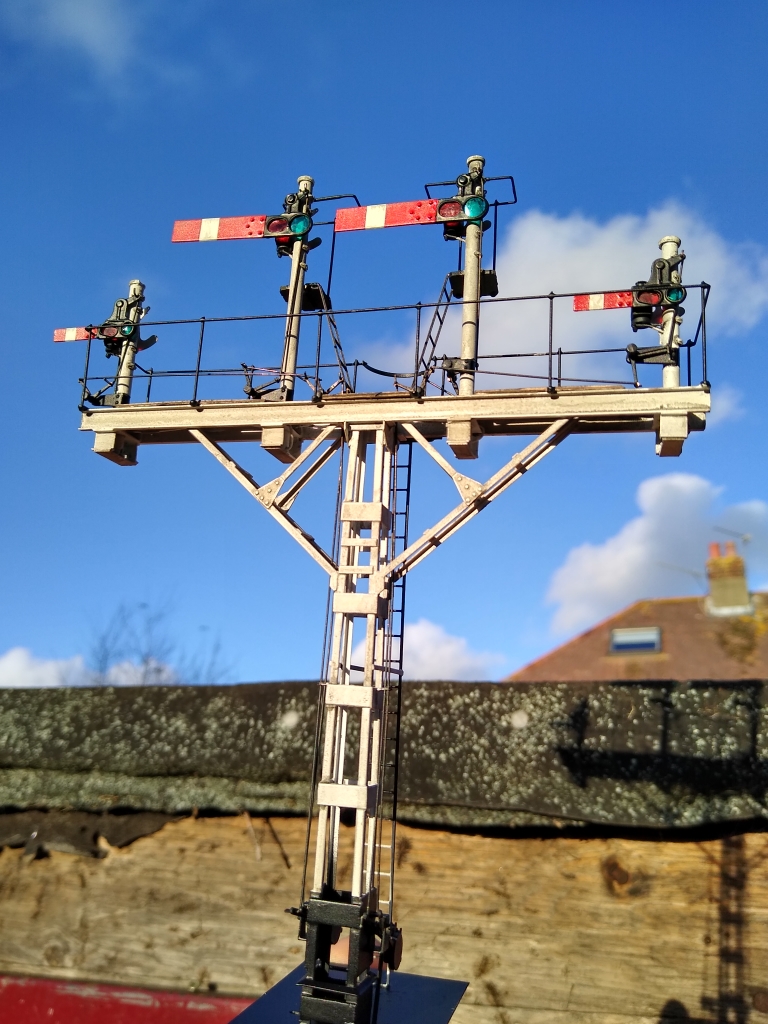

BR (ER) Plate and angle 4 doll balanced bracket. Scratchbuilt with SSS arms on my own etched spec plates. Modelu lamp cases, LED lit and servo operated.

SOME OF MY 2019 PRODUCTIONS

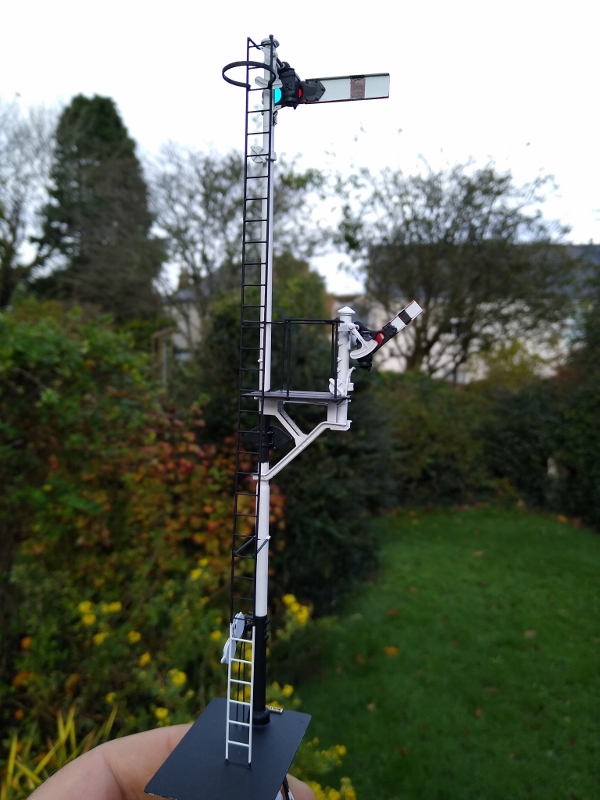

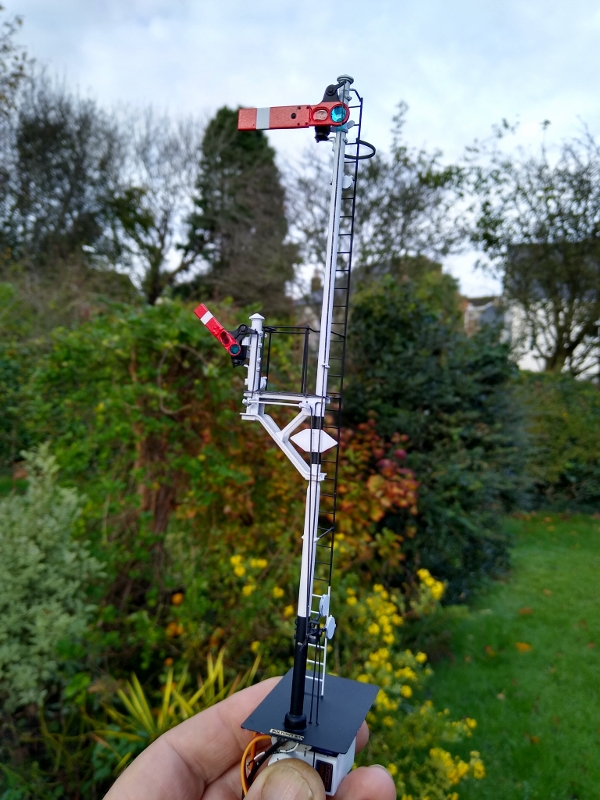

LMS "running line to loop" signal. Made entirely from my own etches and castings except for Modelu lamp cases. LED lit and servo operated. Etched compnents to make one of these will shortly be available in my BB7 range.

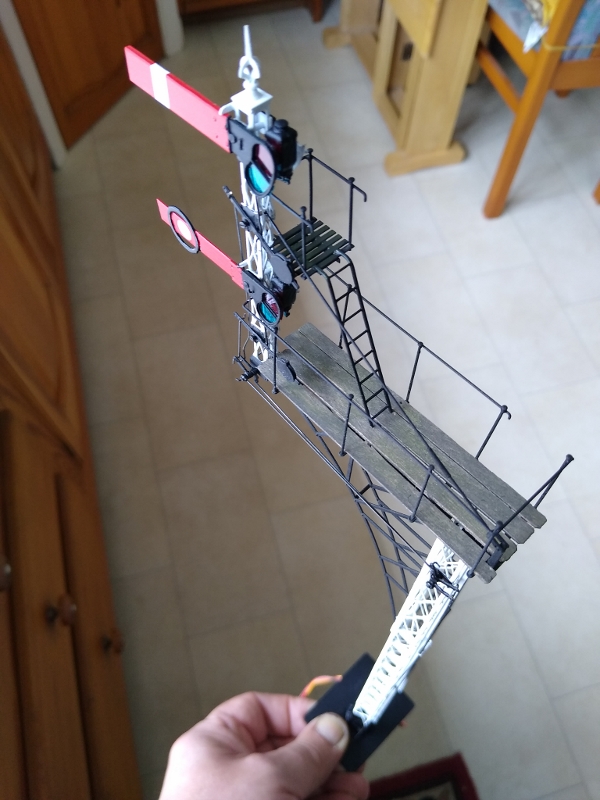

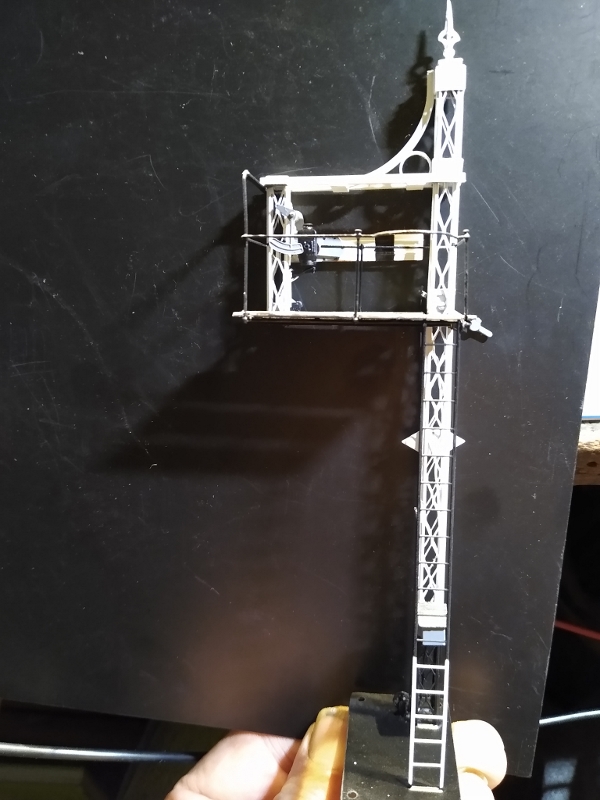

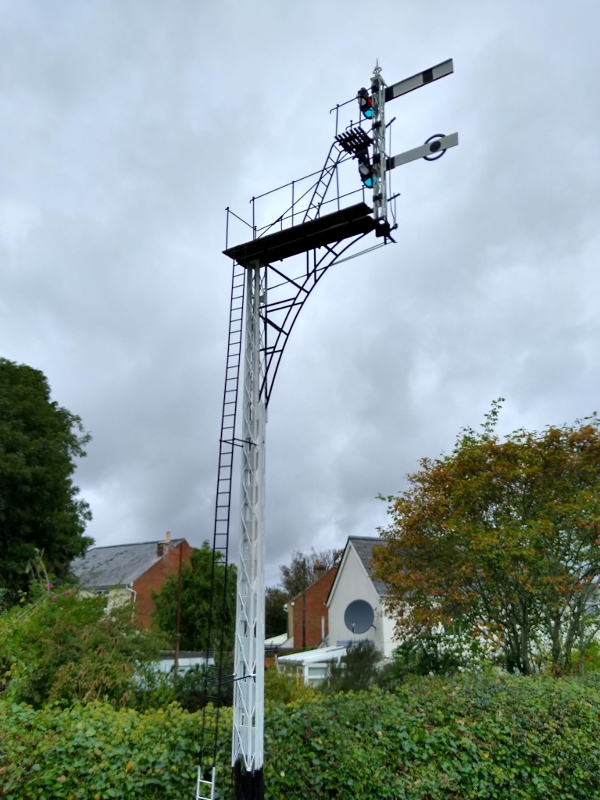

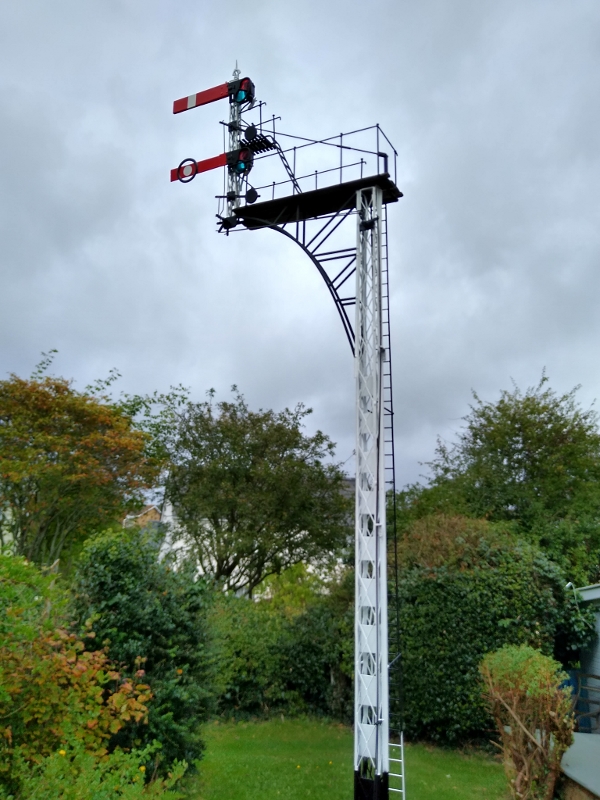

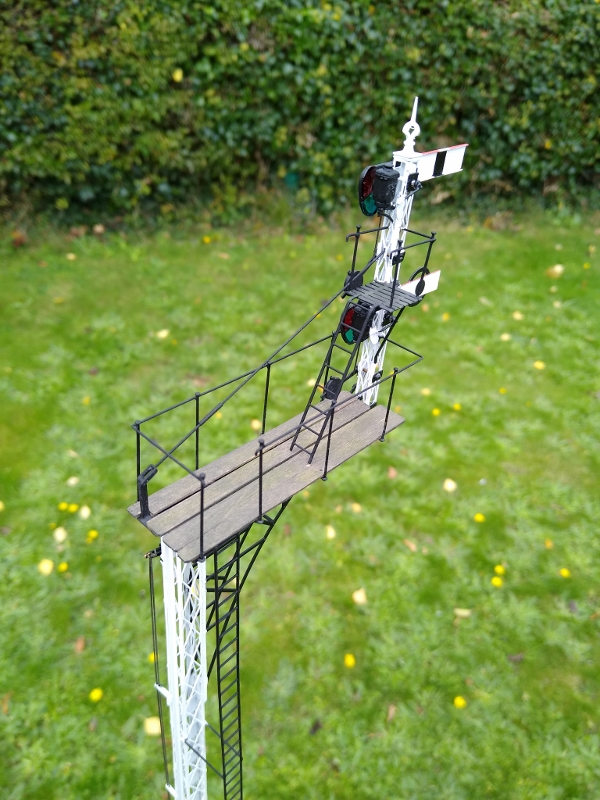

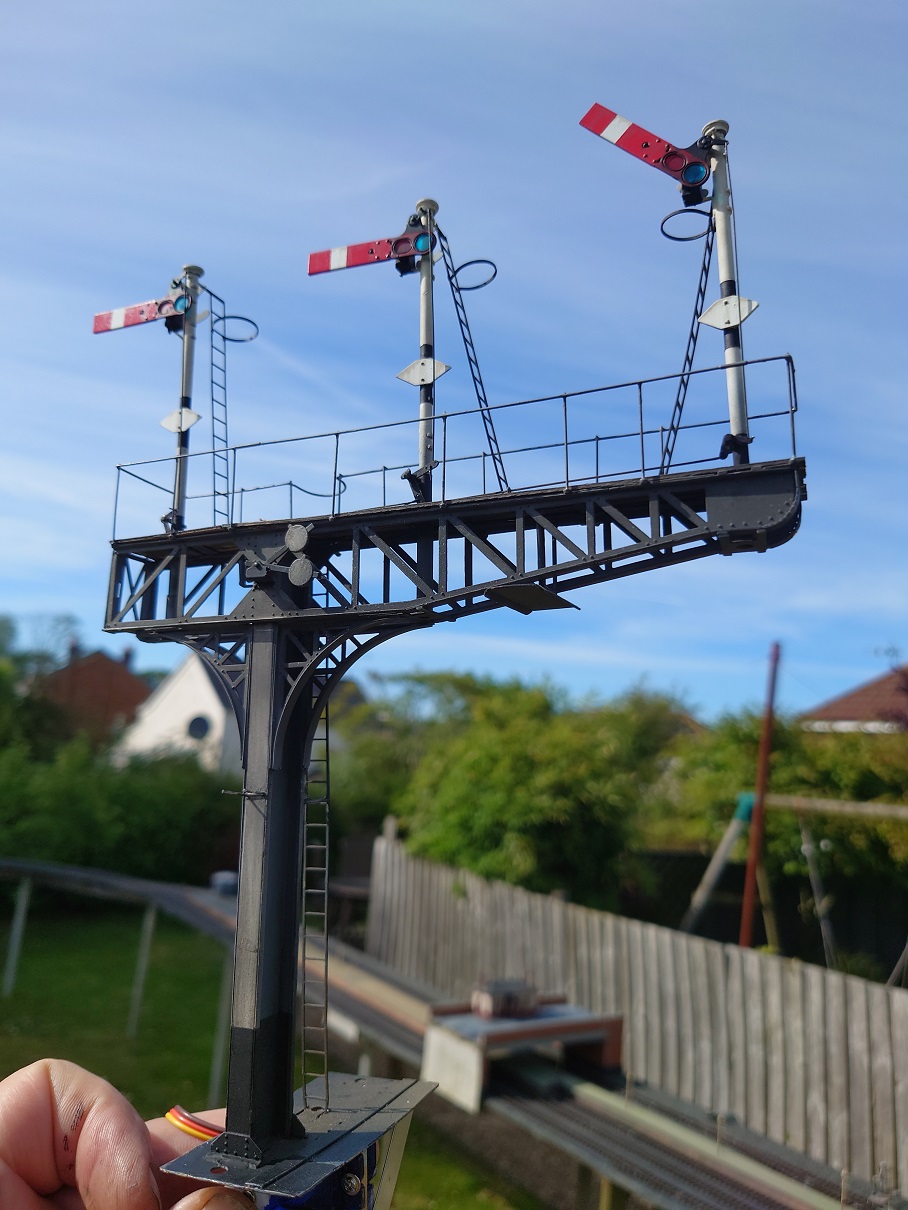

An SDJR offset lattice bracket signal for Radstock. This monster was a scale 45ft tall and I had to design and have etched, both the main post with all its complex internal bracing and spandrel brackets. LED lit and servo operated.

2 more signals for an SDJR layout based on Radstock. Mostly constructed using much modified MSE parts.LED lit and servo operated.

Scratchbuilt hybrid BRW bracket signal with BRM fittings as per Bath Green Park. The bracket structure was my own etched production. Arns from scale signal supply and finials form Modelu. LED lit and servo operated.

Ex MR design balanced bracket from Scale Signal Supply kit with extra details. Servo operated and LED lit.

SOME OF MY 2018 PRODUCTIONS.

LMS UPPER QUADRANT. LED LIT. SERVO OPERATED.

SR RAIL BUILT SIGNAL.4 DOLL SERVO OPERATED. NO LIGHTS

BR(W) STOP SIGNAL. LED LIT. SERVO OPERATED. WEATHERED TO BE RUSTY.

BACK TO TOP

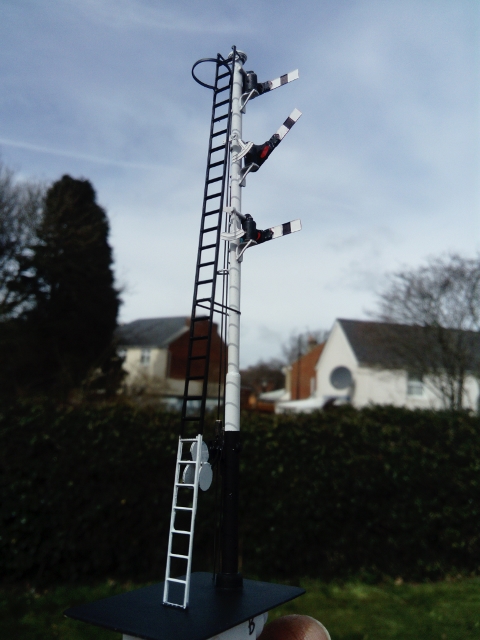

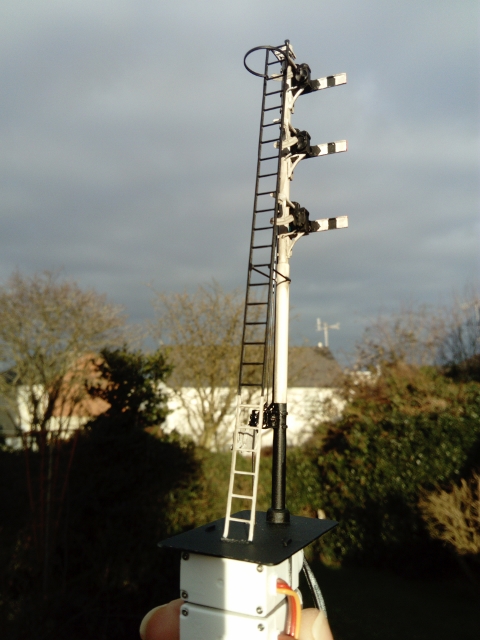

BR(NE) 3 ARM SHUNT SIGNAL. (1 OF 2 MIDENTICAL SIGNALS)BASICALLY THE SAME AS AN LMS ONE WITH DETAIL DIFFERENCES (CAN YOU SPOT THEM?!!

LED LIT AND SERVO OPERATED

Australian type Stevens Stop signal. Etched brass post, MSE arm

LED LIT AND SERVO OPERATED

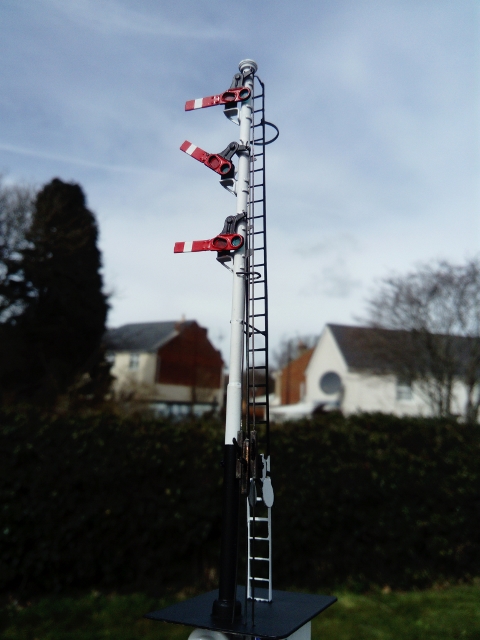

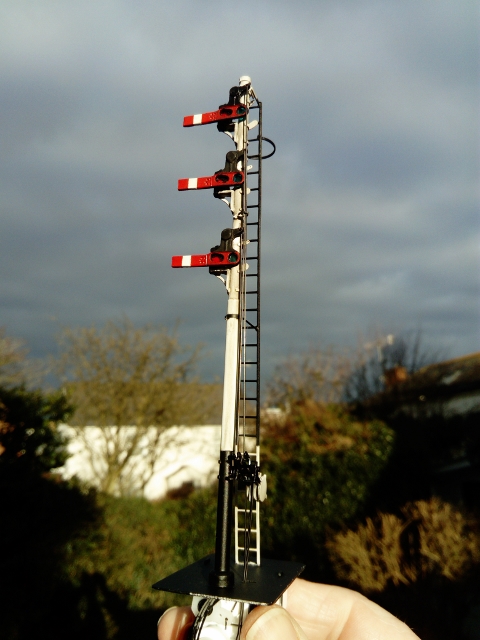

LMS Upper quadrant triple shunt arm (yes, another one!)LED LIT AND SERVO OPERATED

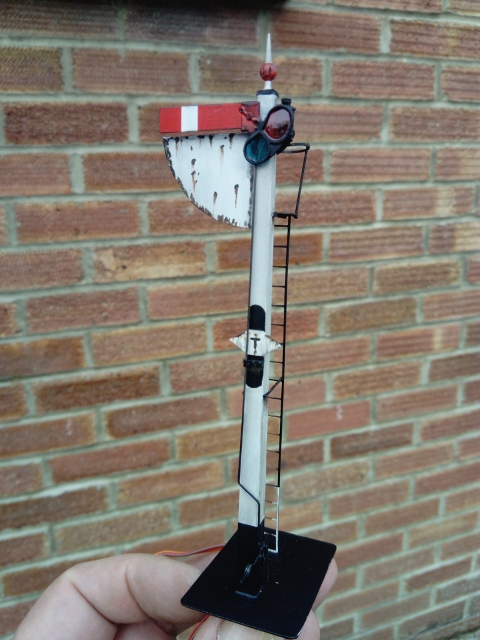

GWR wooden post stop signal, Early pattern arm with rusty sight board. LED LIT AND SERVO OPERATED

BR(WR) externally lit banner repeater. Scratchbuilt and fully working.LED LIT AND SERVO OPERATED

Ex LSWR bracket fitted with upper quadrant arms and 2 shunt discs.LED LIT AND SERVO OPERATED

BACK TO TOP

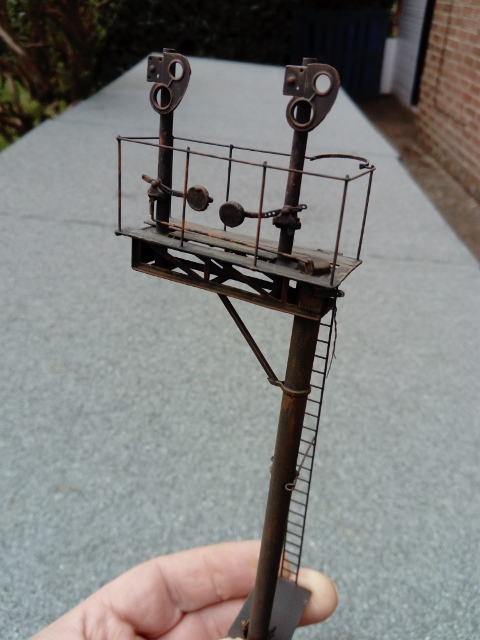

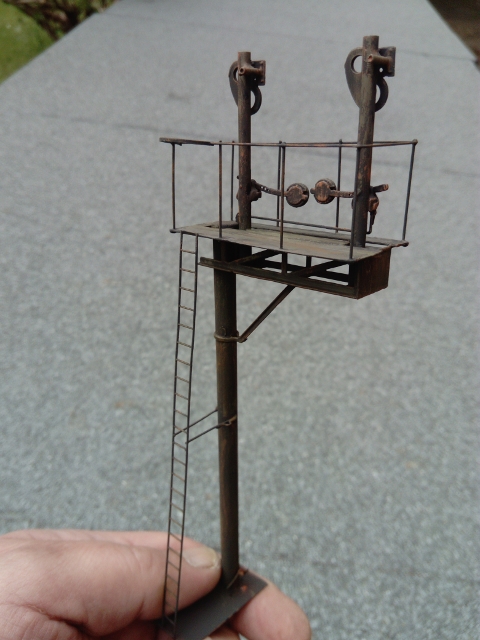

Very Rusty and disused BR(W) bracket signal.
