FOR SALE!

I intend to add a small range of etched parts for the signal scratchbuilder. They will be all parts from which I build my signals and will require the use of folding and riveting tools as necessary. As they are basically just bits for me to use for building my customers signals, it is unlikely that there will be instructions!

The range is currently under development so please keep an eye on the website for regular updates as they occur.

There may also be ready built signals for sale from time to time.

PLEASE NOTE DUE TO INCREASING POSTAL CHARGES, ALL ITEMS PREVIOUSLY SHOWN AS INCLUDING POST AND PACKING IN THE PRICE ARE NOW SUBJECT TO ADDITIONAL P&P.

BB7-01

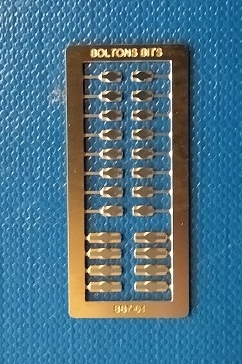

Etched nickel silver bolting plates for LMS tubular post fittings. Used opposite almost anything bolted through the posts. Will require forming to match post diameter.

1.50

INSTRUCTIONS NOT YET PREPARED

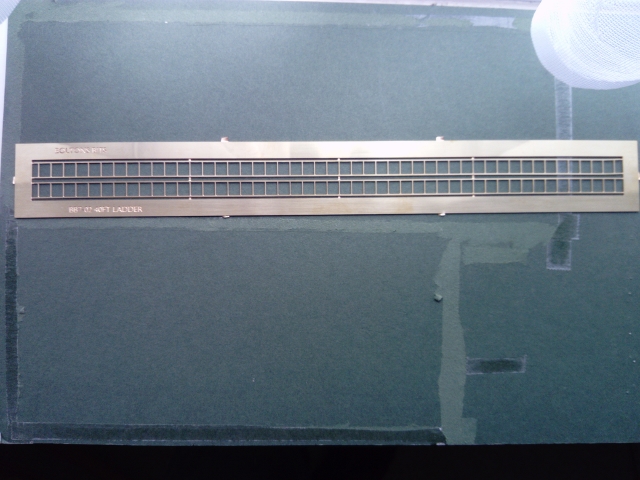

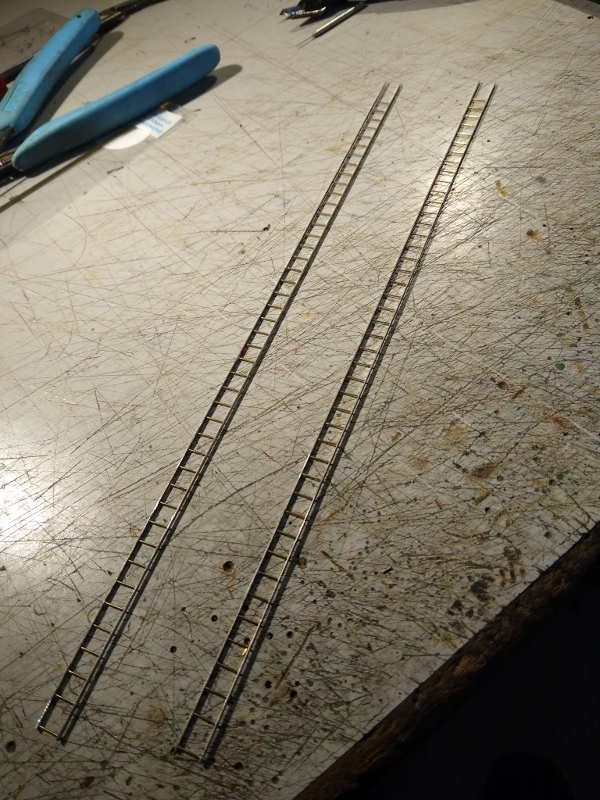

BB7-02
Boltons Bits Etched  7mm scale 40ft ladders. 2 on a fret.
 12 each plus 2 P&P (UK)
To purchase, email for details please

NOW IN NICKEL SILVER

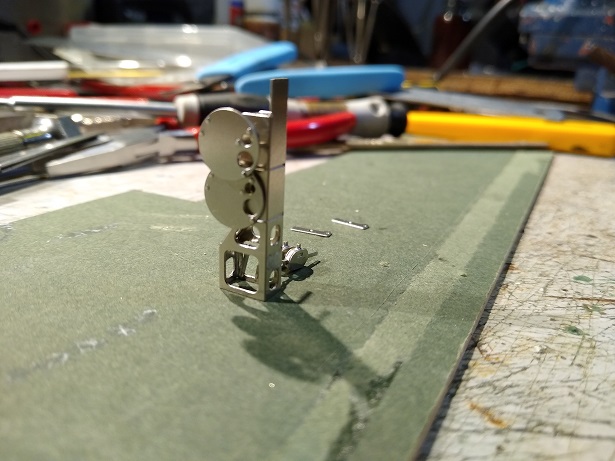

BB7-03
LMS ground signal. Etched fold up item, will make a single or double disc version.
Designed to be operable and lit if required.
Folding and rivet punching tools may be needed for construction.

NOW INCLUDES LASER CUT COLOURED LENSES.


8.00 Each or 12 for 2



AVAILABLE NOW
NewGif
INSTRUCTIONS NOT YET PREPARED

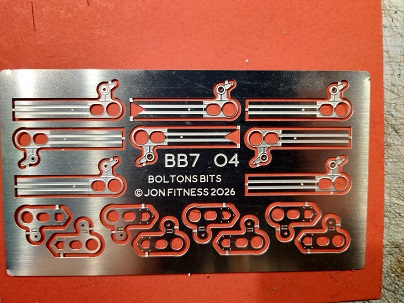

BB7-04
LMS corrugated arms including weight bars and back blinds.

Folding and rivet punching tools may be needed for construction.
UNDER DEVELOPMENT
BB7-05

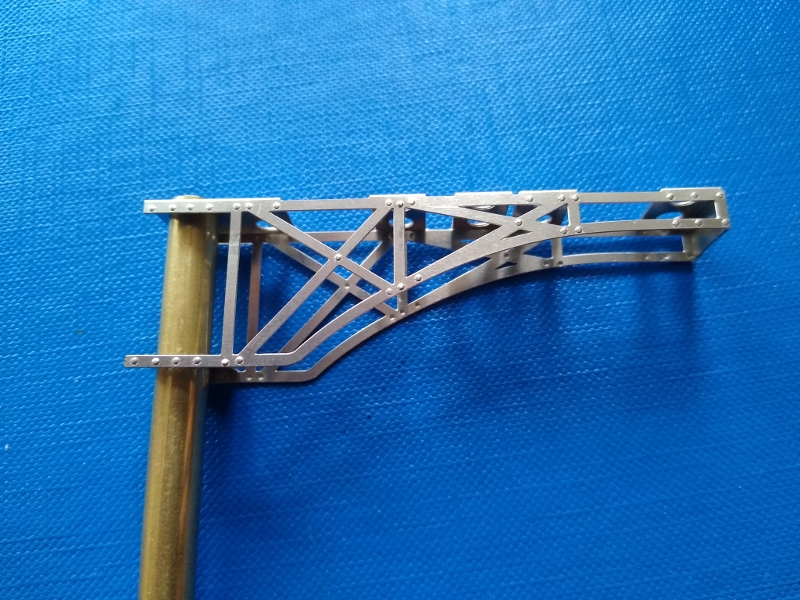

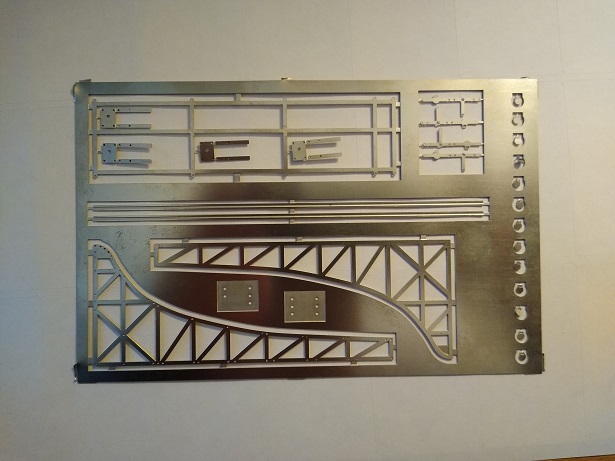

Large LSWR bracket. Suitable for adding to a Lattice main post. Includes Staging and lower flanges and some accessory parts.
20 each

NOW OUT OF STOCK. TO SPECIAL ORDER ONLY

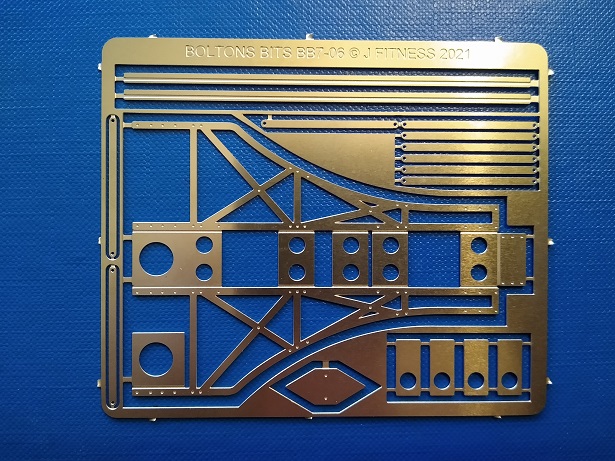

BB7-06
GWR 1942 pattern medium bracket for tubular construction signals. Suitable for up to 3 dolls and supplied with TC diamond, staging supports and lower flange detail.

11 each

AVAILABLE NOWNewGif
INSTRUCTIONS NOT YET PREPARED

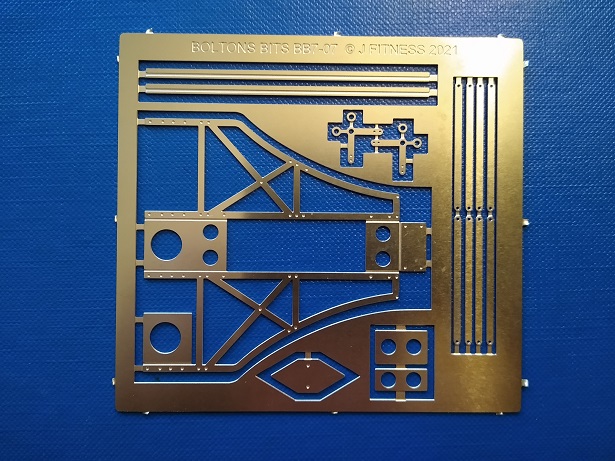

BB7-07
GWR 1942 pattern small bracket for tubular construction signals. Suitable for up to 2 dolls and supplied with TC diamond, staging supports and lower flange detail.

10 each

AVAILABLE NOW
NewGif
INSTRUCTIONS NOT YET PREPARED

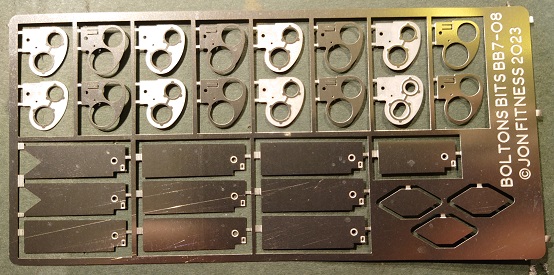

BB7-08
GWR/BR(W) flanged arms and spec plates. Includes separate etch for weight bars, weight bar supports backblinds, a few track circuit diamonds, arm pivots and useful cranks Will make 8 arms and includes Spectacle plate for one shunt/goods arm.
Folding and rivet punching tools may be needed for construction.
INCLUDES PRE-CUT COLOURED LENSES


22
(REVISED ETCH DESIGN FOR 2024)




AVAILABLE NOW



Link to YouTube video Instructions
NewGif

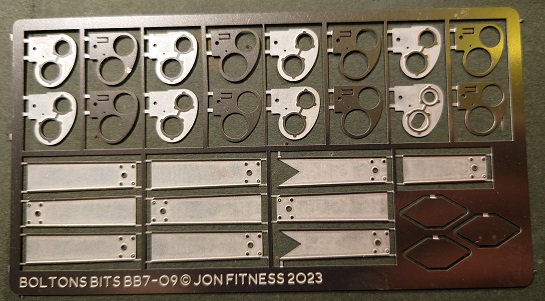

BB7-09

GWR/BR(W) corrugated edged arms and spec plates.
Includes separate etch for weight bars, weight bar supports backblinds, a few track circuit diamonds, arm pivots and useful cranks Will make 8 arms and includes Spectacle plate for one shunt/goods arm.

22

Folding and rivet punching tools may be needed for construction.
INCLUDES PRE-CUT COLOURED LENSES

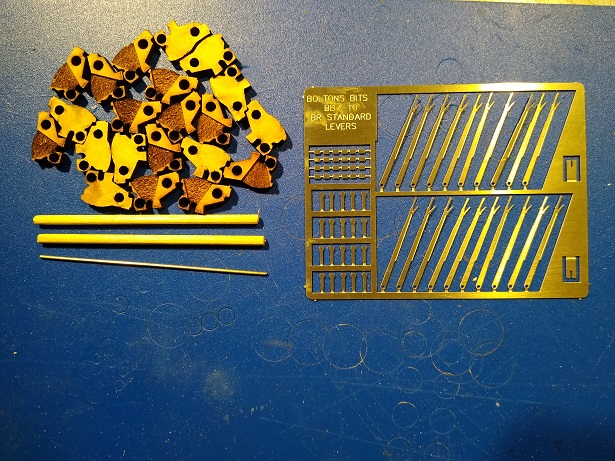

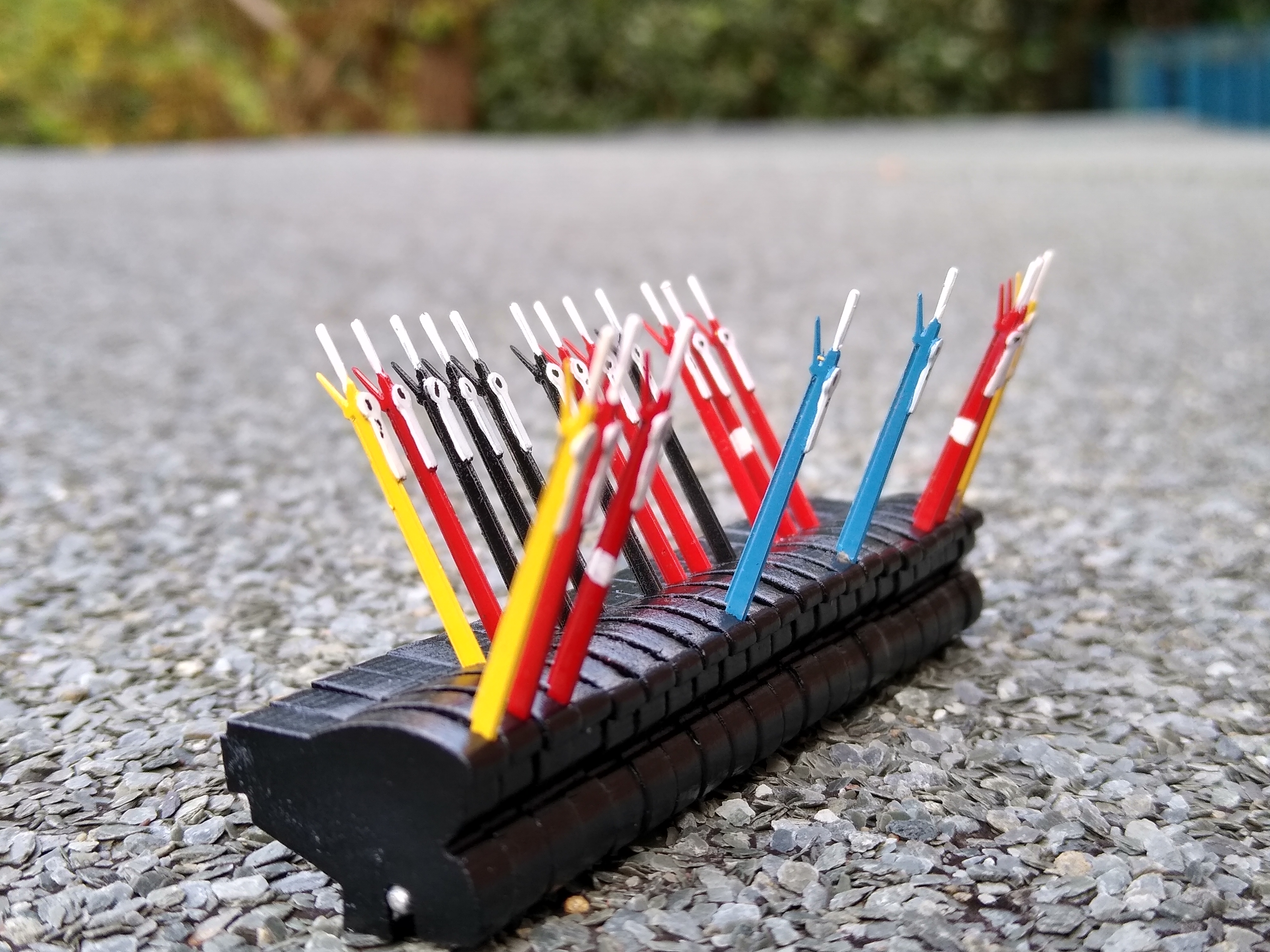

BB7-10
Cosmetic/non working BR/REC standard lever frame. Etched Nickle Silver levers/numberplates/pull plates. Laser cut MDF frame sections. Brass Axle rod. Makes a 20 lever frame.
20 plus 2 P&P (UK)
To purchase, email for details please.
AVAILABLE NOW

BB7-11
LMS Shunt signal arms.
Makes up to 6 arms. Includes 4 flanged and 2 corrugated arms, blanking plates for calling on arms, arm pivots, weight bars and backblinds.

Note: Etch will be altered to include weight bar bearings before going on sale
Supplied with laser cut coloured lenses.

15

AVAILABLE NOW

INSTRUCTIONS NOT YET PREPARED

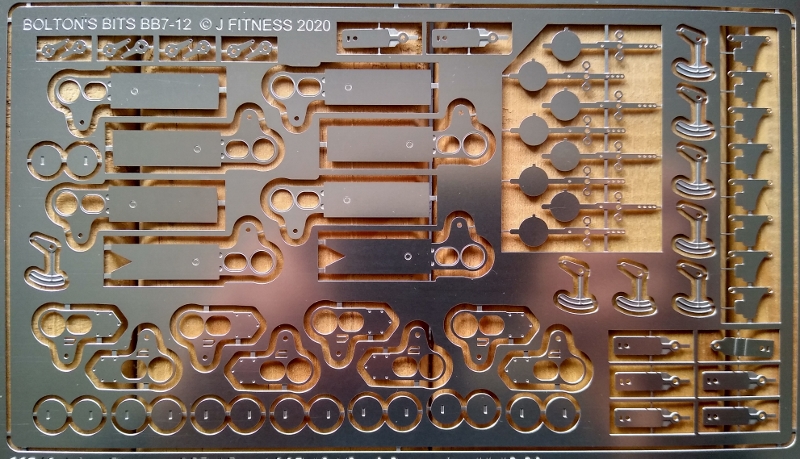

BB7-12
LMS Nicholls Pattern arms including weight bars, fold up weight bar support, fold up arm pivots and back blinds.
Sufficient parts for 8 arms.
Etch maybe subject to detail change.
Includes precut coloured lenses.
Folding and rivet punching tools may be needed for construction.
NOW INCLUDES LASER CUT COLOURED LENSES

22

email for details and purchasing.

AVAILABLE NOW
BB7-12pic1
YouTube video of instructions!

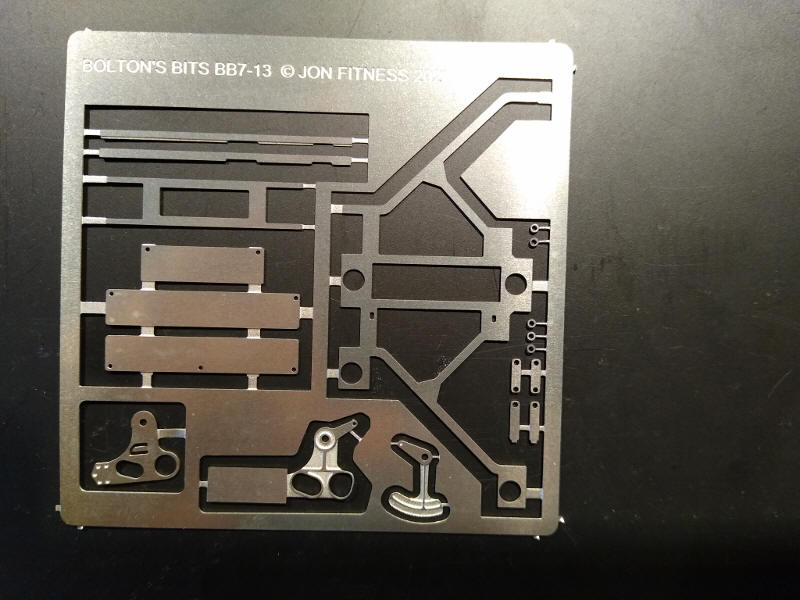

BB7-13
LMS "Running line to loop" bracket etch.
This for the Left Hand facing version only!
Includes etches for linkages, staging, and one shunt arm etch.

11

Folding and rivet punching tools may be needed for construction.

email for details and purchasing.
NOW INCLUDES LASER CUT COLOURED LENSES

AVAILABLE NOW
BB7-13

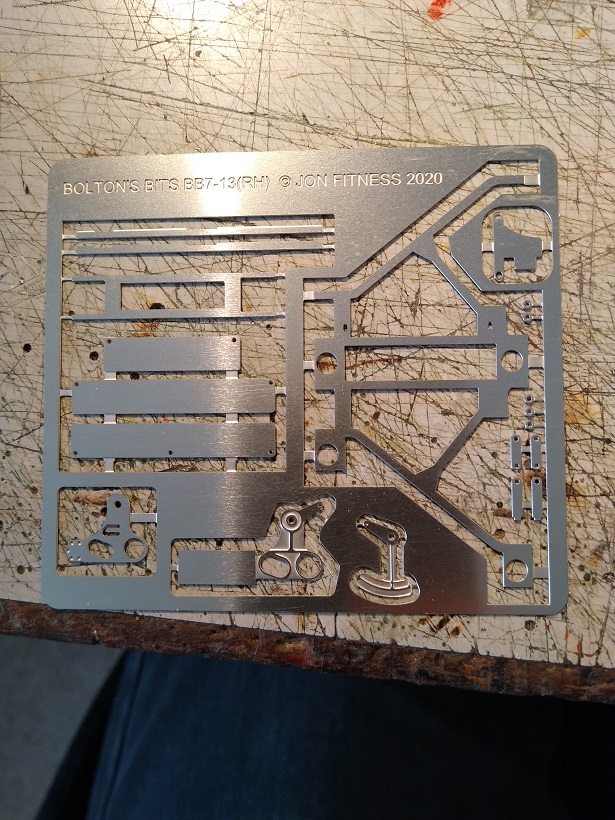

BB7-13 (RH)
LMS "Running line to loop" bracket etch.
This for the Right Hand facing version only!
Includes etches for linkages, staging, and one shunt arm etch.

11

Folding and rivet punching tools may be needed for construction.

email for details and purchasing.
NOW INCLUDES LASER CUT COLOURED LENSES

AVAILABLE NOW
BB7-14
Useful LMS signal fittings. Includes weight bars, pivots, bolt plates, sight boards and fixing brackets, staging, cross shaft fittings, diamonds, D plates, bell cranks/supports, ladder stays and ladder hoops.
UNDER DEVELOPMENT

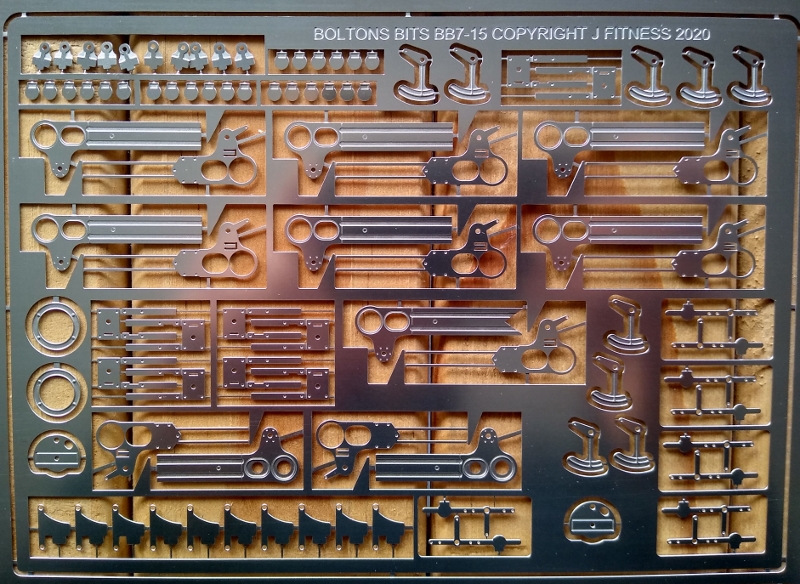

BB7-15
SR corrugated upper quadrant arms, weight bars and weight bar supports. Includes short goods arms with etched rings and 2 shunt disc faces. Makes up to 9 Arms
Includes precut coloured lenses


Folding and rivet punching tools may be needed for construction.

22

email for details and purchasing.
NOW INCLUDES LASER CUT COLOURED LENSES


AVAILABLE NOW

INSTRUCTIONS NOT YET PREPARED
BB7-15pic1

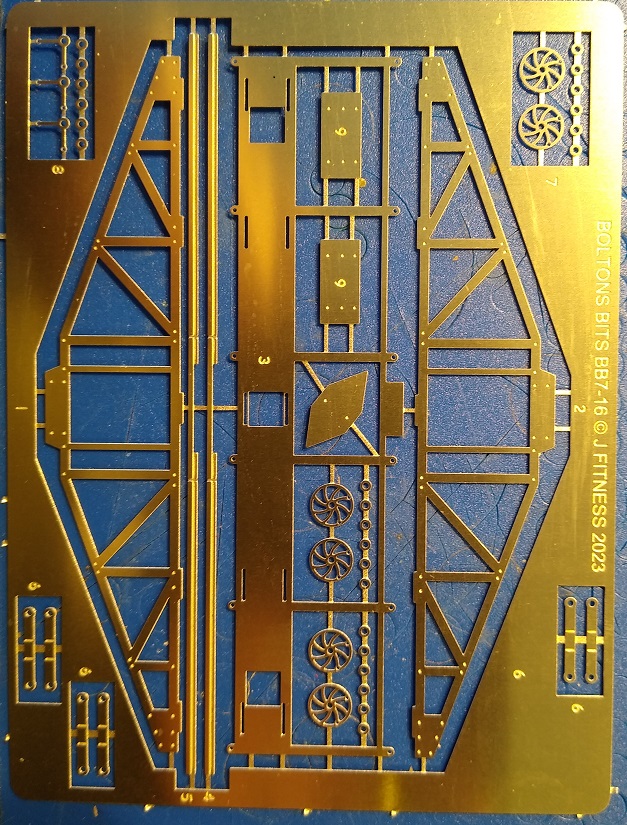

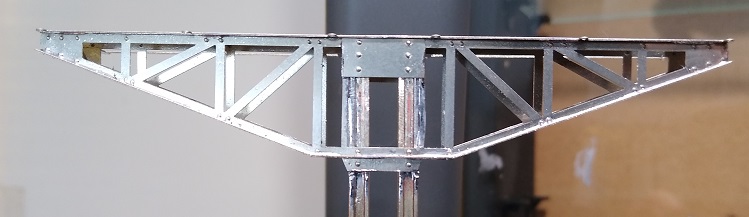

BB7-16A
BR(SR) 2/3 doll Brackets for Railbuilt signal structures. (Rails not included!!)
AVAILABLE NOW

11

email for details and purchasing.


INSTRUCTIONS NOT YET PREPARED
NewGif

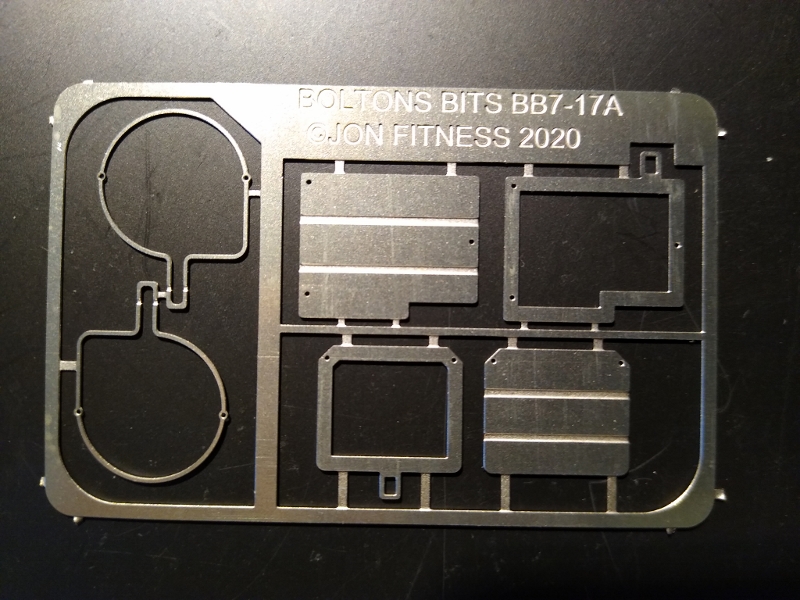

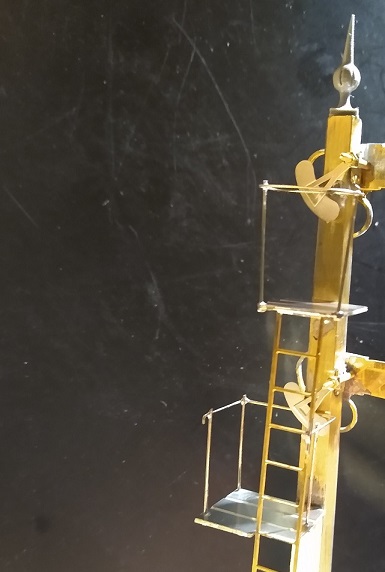

BB7-17A

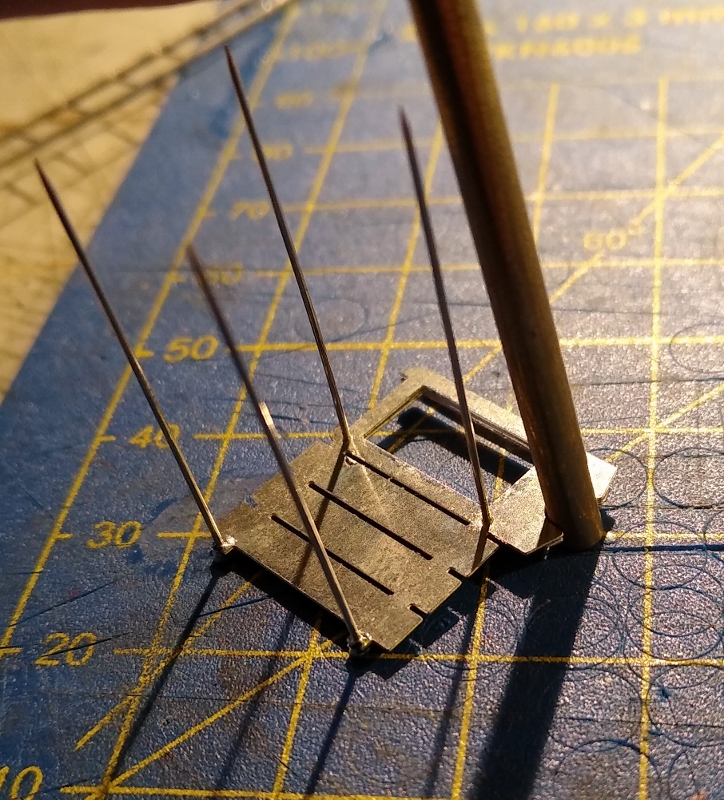

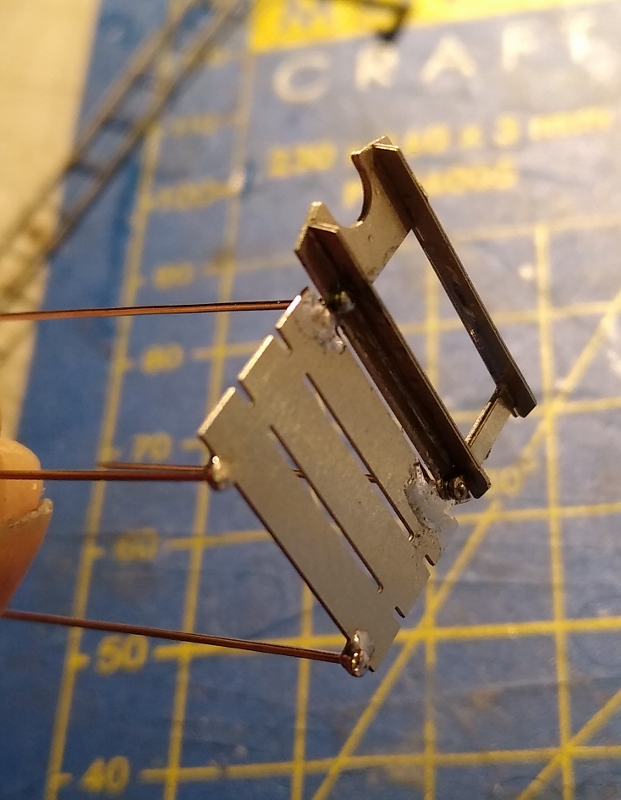

Etched Handrail and staging for GWR wooden post signals.
Includes top stage, lower stage for distant under stop signal and 2 handrails. Could possibly be used for later tubular post design signals.



email for details and purchasing.



TEMPORARILY WITHDRAWN FOR MODIFICATION TO ETCH.
BB7-18
LMS Pratt truss gantry
UNDER DEVELOPMENT
BB7-19
LMS Welded stem post plus bracket
UNDER DEVELOPMENT
BB7-20
LMS Broad Flange Beam post.
UNDER DEVELOPMENT
BB7-21
LMS Taper lattice post cantilever bracket.
UNDER DEVELOPMENT

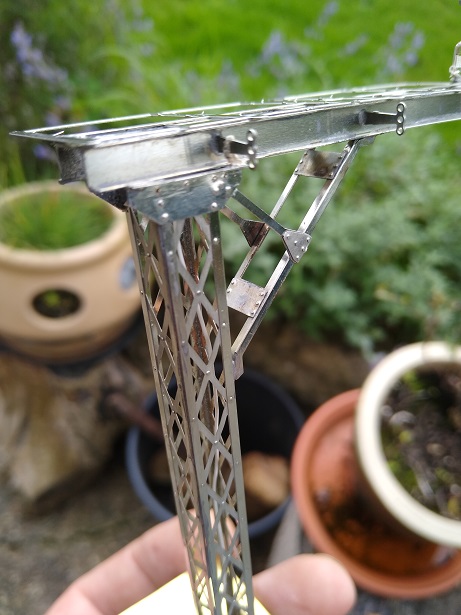

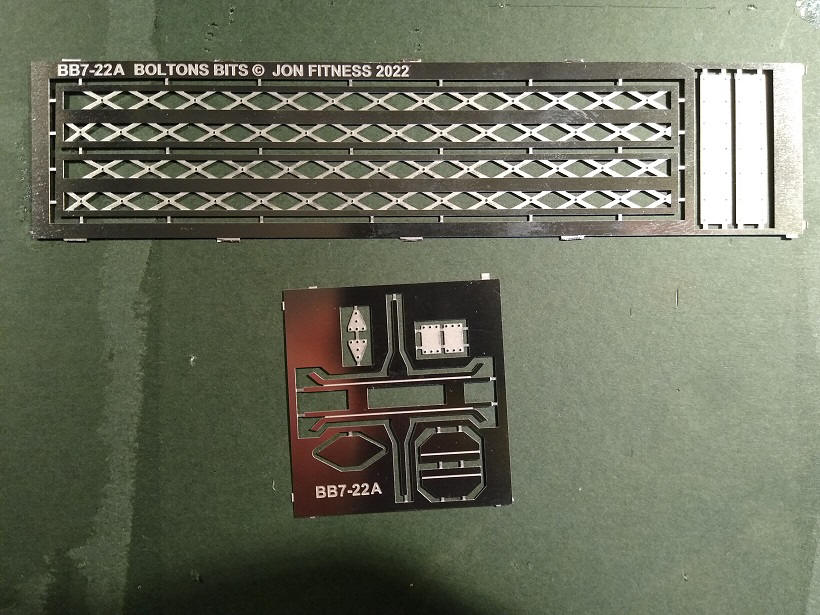

BB7-22A
12 inch width LMS Parallel lattice post/bracket. Includes one offset bracket support etch.

14

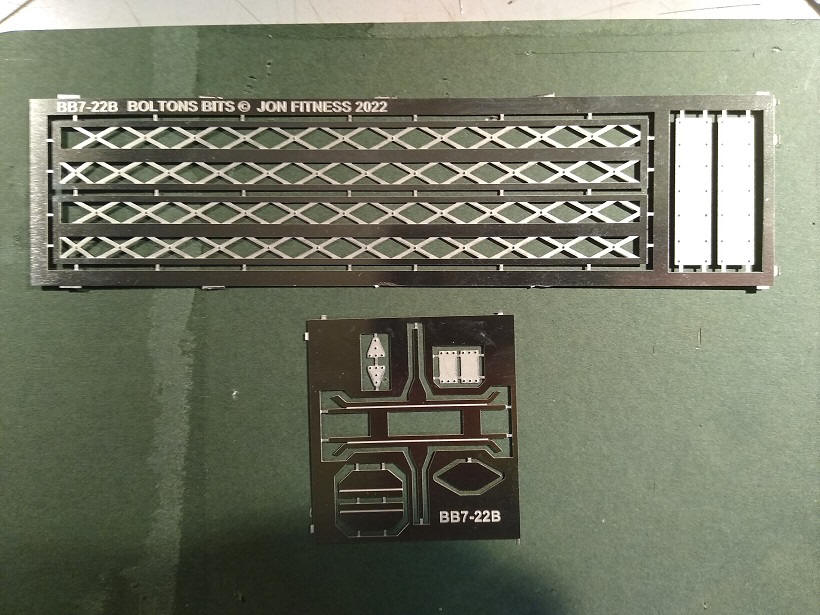

BB7-22B
14 inch width LMS Parallel lattice post/bracket.Includes one offset bracket support etch.

14

BB7-23
LMS fold up trimmers and brackets. To include cross shaft fittings.
 3 DIFFERENT CONFIGURATIONS WILL BE AVAILABLE AND MAY BE UNDER SEPERATE BB7 NUMBERS

SEE BELOW FOR FRET DETAILS

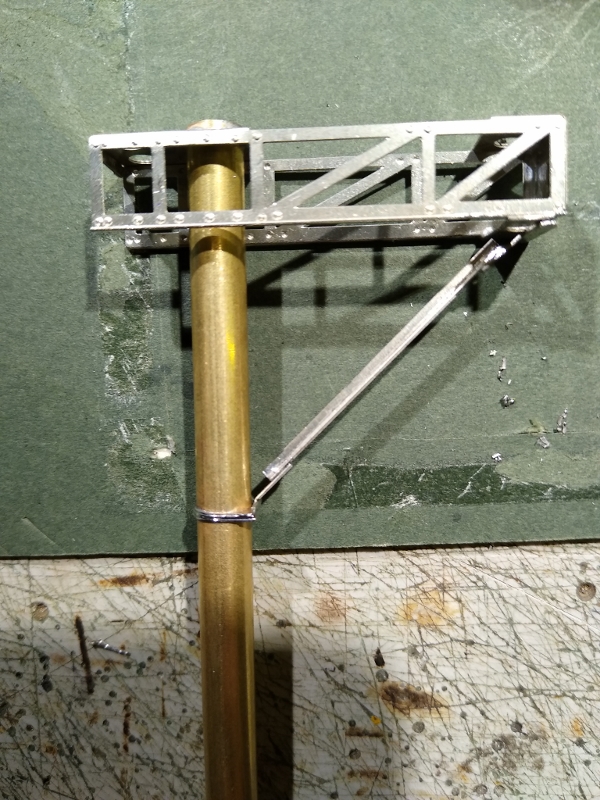

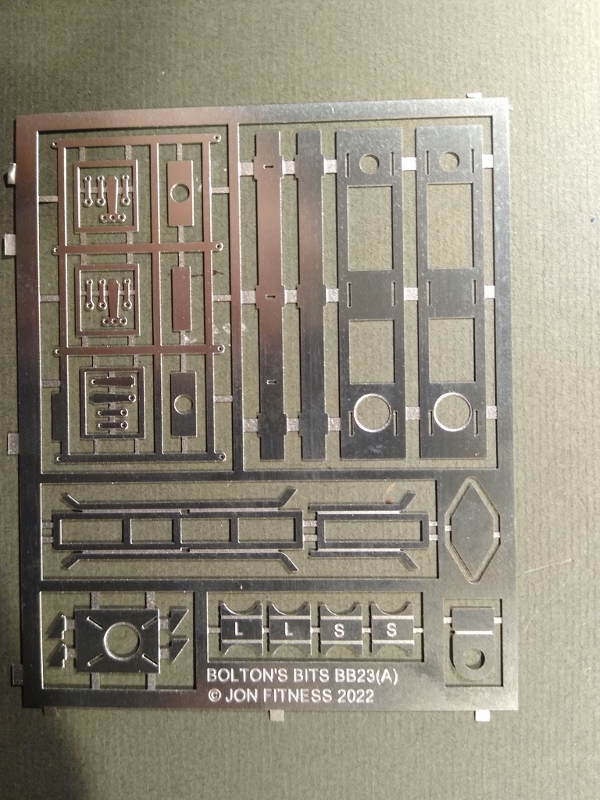

BB7-23 (A)
Fret to make one LMS offset bracket. Includes parts to cater for two sizes of main post, TC diamond, Fireman's call plunger D sign and fittings for operating cross shafts.
11
AVAILABLE NOW


INSTRUCTIONS NOT YET PREPARED

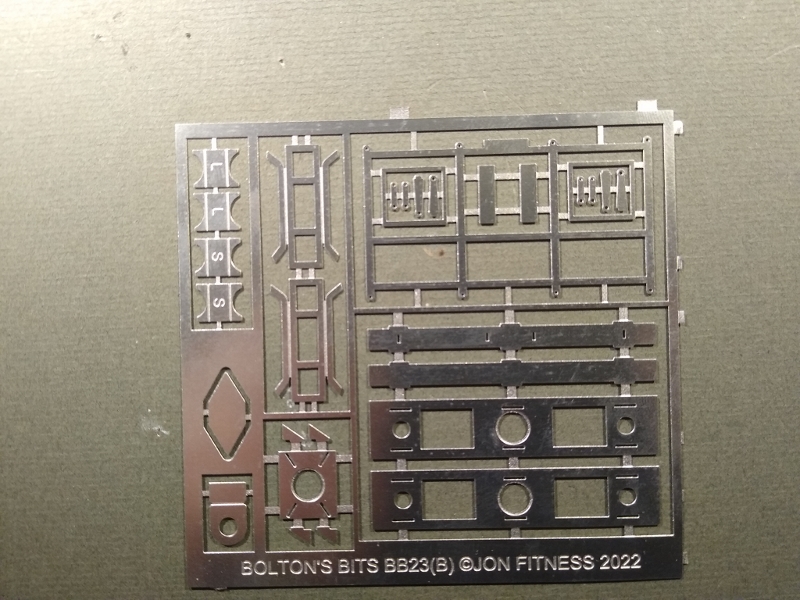

BB7-23 (B)
Fret to make one LMS two doll balanced bracket. Includes parts to cater for two sizes of main post, TC diamond, Fireman's call plunger D sign and fittings for operating cross shafts.
11
AVAILABLE NOW


INSTRUCTIONS NOT YET PREPARED

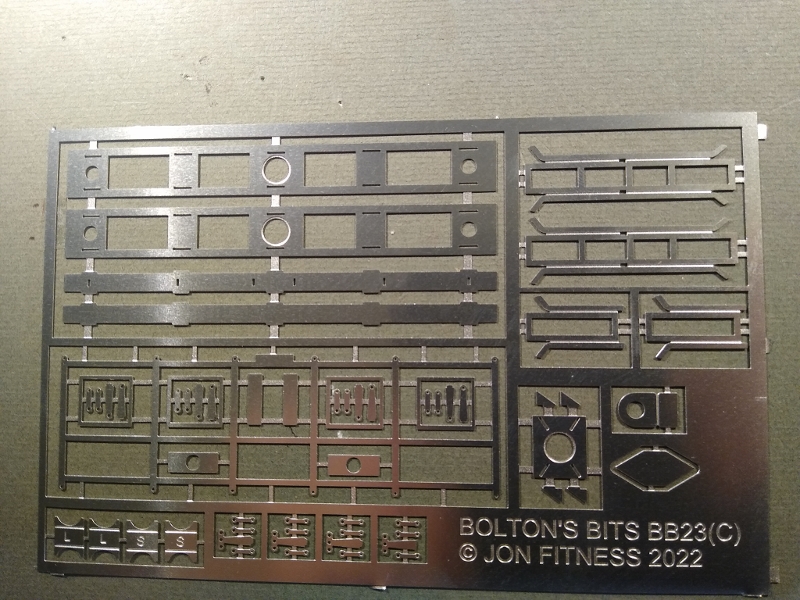

BB7-23 (C)
Fret to make one LMS 3 doll balanced bracket. Includes parts to cater for two sizes of main post, TC diamond, Fireman's call plunger D sign and fittings for operating cross shafts.
13
AVAILABLE NOW


INSTRUCTIONS NOT YET PREPARED
BB7-24
Assorted GWR/BR(W) signal fittings
UNDER DEVELOPMENT

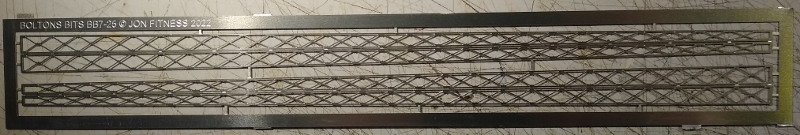

BB7-25
40 ft LMS pattern lattice post.

12
AVAILABLE NOW


INSTRUCTIONS NOT YET PREPARED

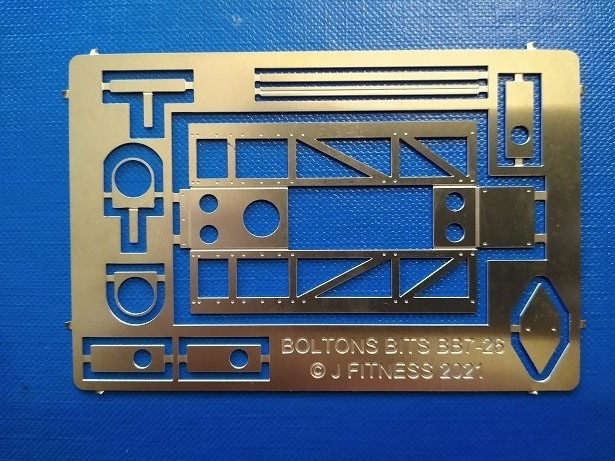

BB7-26
BR(W) Smaller signal bracket for 1 or 2 dolls.
Includes support bracket and TC diamond.
11

AVAILABLE NOW


BB7-27
BR(W) larger signal bracket for 1 to 3 dolls.
Includes support brackets and TC diamond. Will include staging supports when available.
12

AVAILABLE NOW

INSTRUCTIONS NOT YET PREPARED

BB7-28
LMS Mechanical Route indicator with up to 5 route flags.
UNDER DEVELOPMENT
BB7-29
SR Electro Mechanical Route indicator.
UNDER DEVELOPMENT
BB7-30
GWR Illuminated STOP indicator.
UNDER DEVELOPMENT

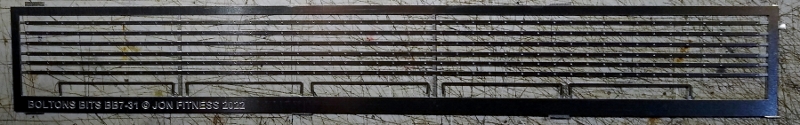

BB7-31
Etched Built up ladders for LMS signals. Includes ladder hoops.
Enough for 3 ladders
A home made jig is recommended for the construction of these. Details to follow.
12





AVAILABLE NOW

INSTRUCTIONS NOT YET PREPARED


BB7-32A

GWR Early pattern Loop Line centre pivot arm and bracket (LEFT HAND SET UP)
UNDER DEVELOPMENT
BB7-32B

GWR Early pattern Loop Line centre pivot arm and bracket (RIGHT HAND SET UP)
UNDER DEVELOPMENT

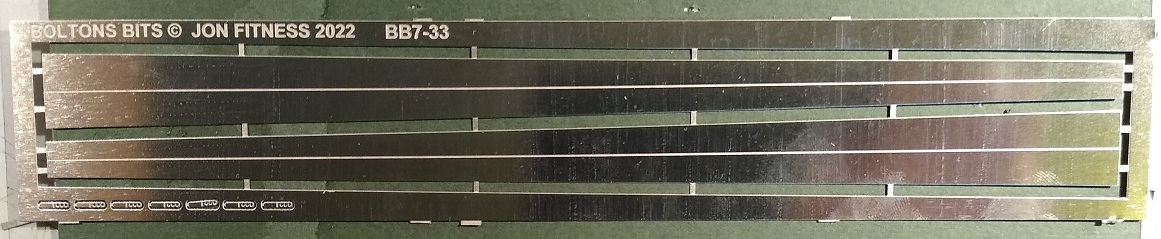

BB7-33
30 ft tapered fold up "wooden" signal post.

11

NewGif

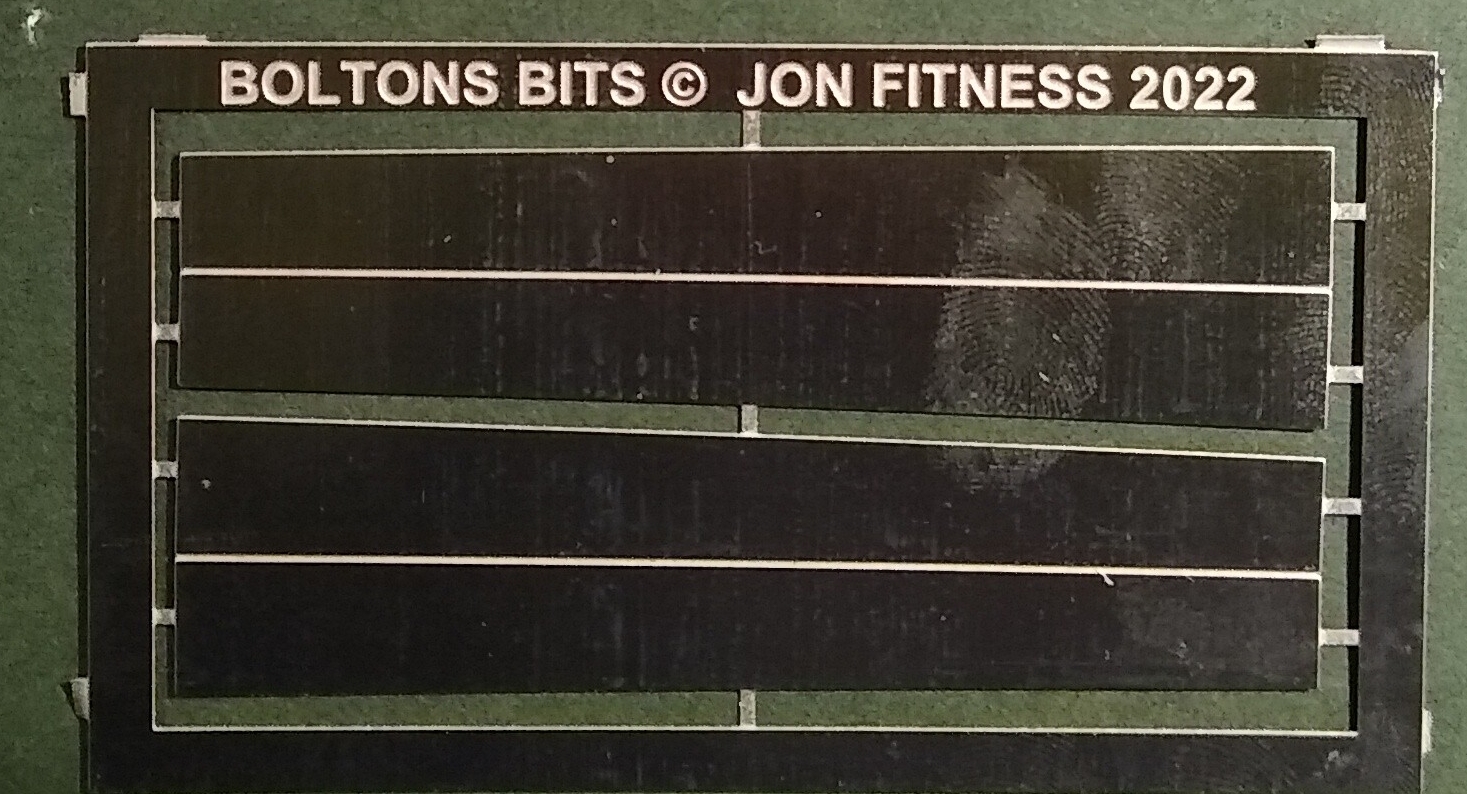

BB7-33X
10 ft tapered fold up "wooden" signal post lower extention section for BB7-33 to make up a 40ft post.

5
NewGif

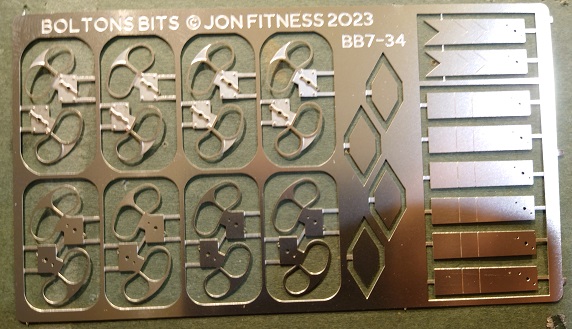

BB7-34
GWR Early pattern "wooden" type 4ft arms.
Sufficient parts for up to 8 arms.
Includes separate etch for weight bars, weight bar supports backblinds, a few track circuit diamonds, arm pivots and useful cranks .

22

Folding and rivet punching tools may be needed for construction.
INCLUDES PRE-CUT COLOURED LENSES

NewGif

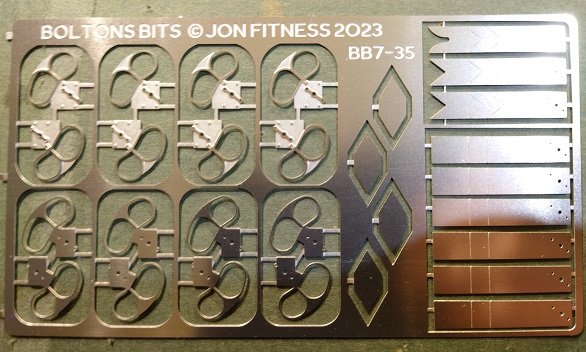

BB7-35
GWR Early pattern "wooden" type 5ft arms. with correct larger spectacle plates and an early "swallow pattern" distant blade.
Sufficient parts for up to 8 arms.
Includes separate etch for weight bars, weight bar supports backblinds, a few track circuit diamonds, arm pivots and useful cranks .

22

Folding and rivet punching tools may be needed for construction.
INCLUDES PRE-CUT COLOURED LENSES
NewGif

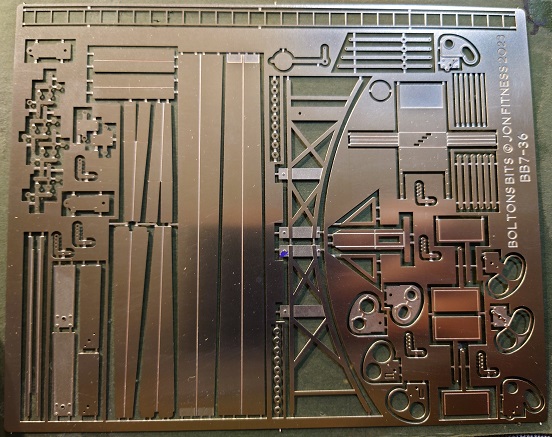

BB7-36

A kit to build a GWR Wooden post 2 doll offset bracket signal with a 4 leaf "cash register" type route indicator Includes only etched parts with a choice of early or later pattern arms. A comprehensive  downloadable set of instructions will be developed for this in due course and this will be to special order only .

40
Folding and rivet punching tools may be needed for construction.
INCLUDES PRE-CUT COLOURED LENSES
NewGif

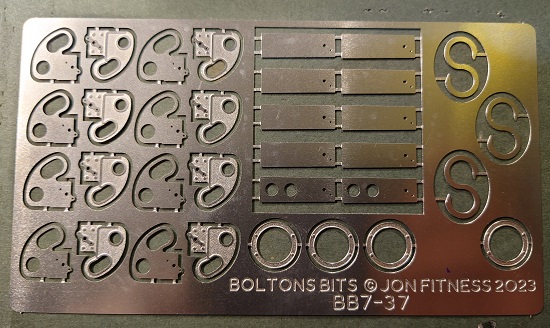

BB7-37
GWR Early pattern goods loop type 3ft arms.
Sufficient parts for up to 8 arms with "S" and "O" letters.
Includes separate etch for weight bars, weight bar supports backblinds, a track circuit diamond, arm pivots and useful cranks .

22

Folding and rivet punching tools may be needed for construction.
INCLUDES PRE-CUT COLOURED LENSES
